Removal

REMOVAL





1. Disconnect the negative battery cable.




2. Remove the front grille. Grille - Removal.

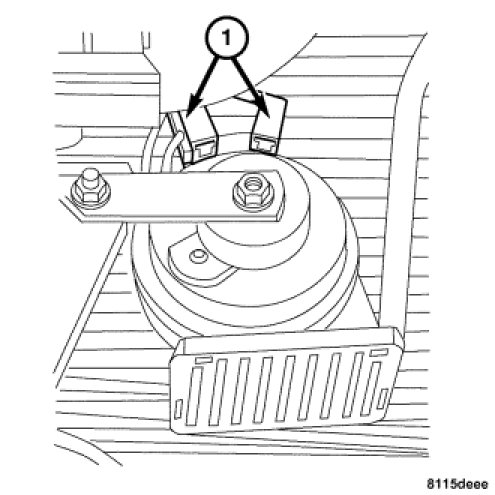

3. Disconnect the horn harness connector (1).




NOTE: Do not disconnect the horn from the horn mounting bracket.

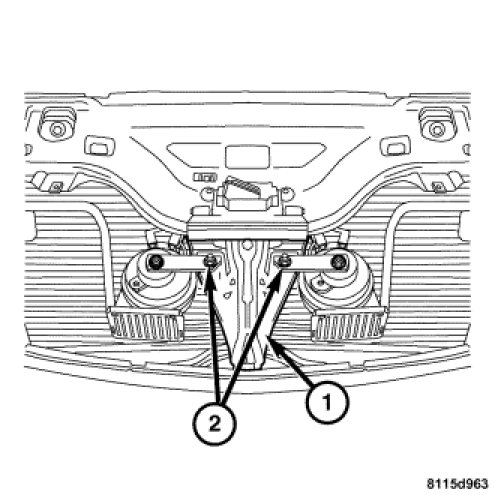

4. Remove the horn bracket mounting bolt (2) from the core support brace (1).
5. Remove the horn from the vehicle.
