High Beam Bulb

HIGH BEAM BULB

1. Disconnect the negative battery cable.
2. Remove the headlamp unit. Headlamp Unit - Removal.




3. Remove the headlamp bulb access plug.

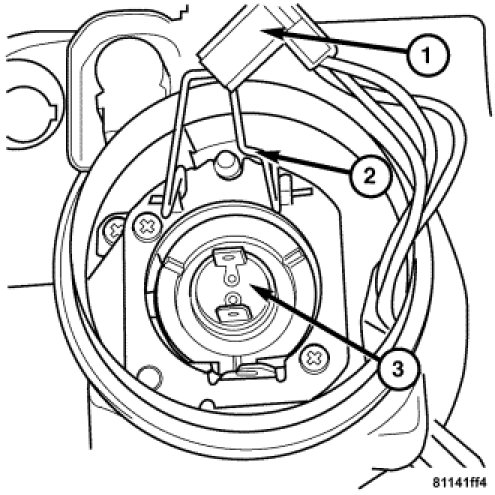

4. Disconnect the headlamp bulb harness connector (1).
5. Disengage the bulb retaining clip (2) and remove the bulb (3) from the headlamp unit.
