Fog Lamp - Installation

INSTALLATION





1. Position the fog lamp unit into the front fascia panel.

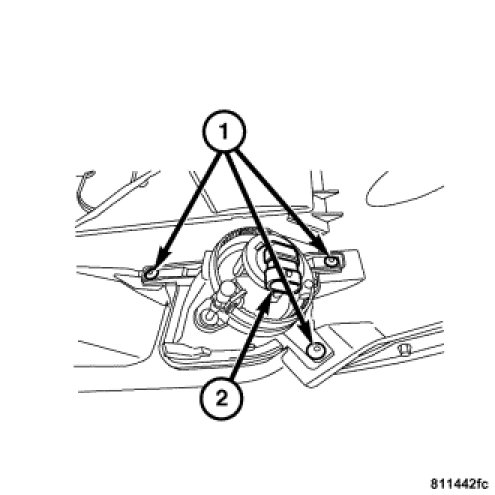

2. Insert the fog lamp unit attachment bolts (1) and secure.
3. Connect the fog lamp harness connector to the fog lamp bulb (2).
4. Install the lower engine splash shield.
5. Connect the negative battery cable.
