Fog Lamp Bulb - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Raise and support the vehicle.

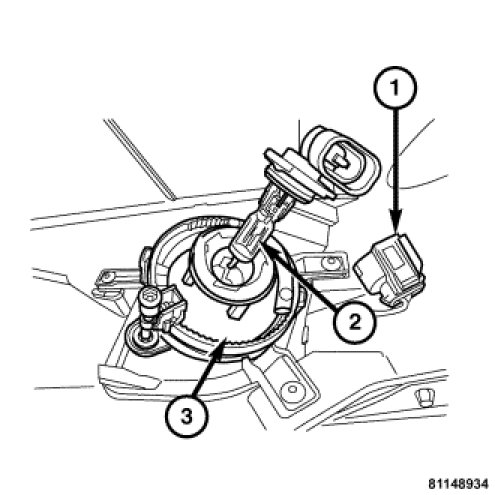

3. Rotate the steering wheel fully in one direction and open the access panel (1) in the front inner fender liner.




4. Remove the fog lamp harness connector (1) from the fog lamp bulb (2).
5. Rotate the fog lamp bulb (2) counterclockwise and remove from the fog lamp unit (3).
