Fog Lamp Bulb - Installation

INSTALLATION

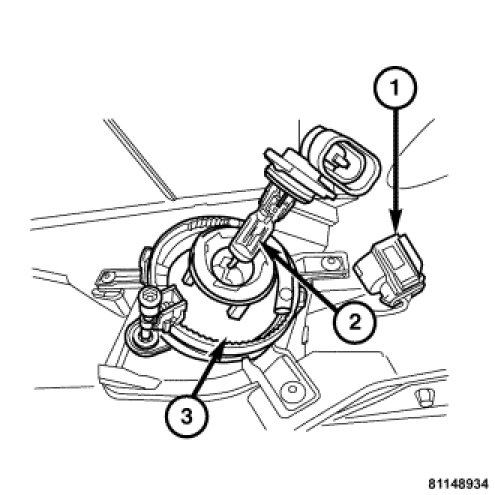

1. Insert and rotate the fog lamp bulb (2) clockwise into the fog lamp unit (3).
2. Connect the fog lamp harness connector (1) to the fog lamp bulb (2).

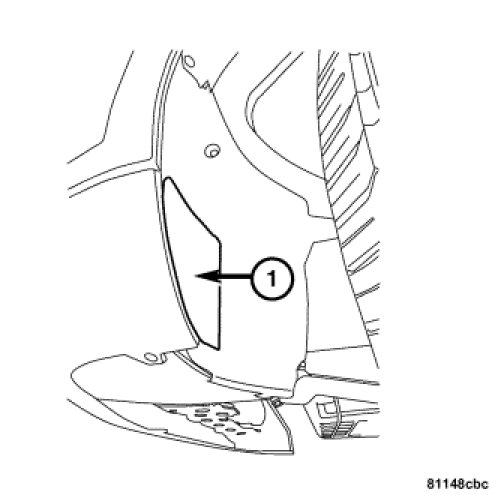

3. Close the access panel (1) in the front inner fender liner.
4. Lower the vehicle.
5. Connect the negative battery cable.
