Removal

REMOVAL





1. Disconnect the negative battery cable.

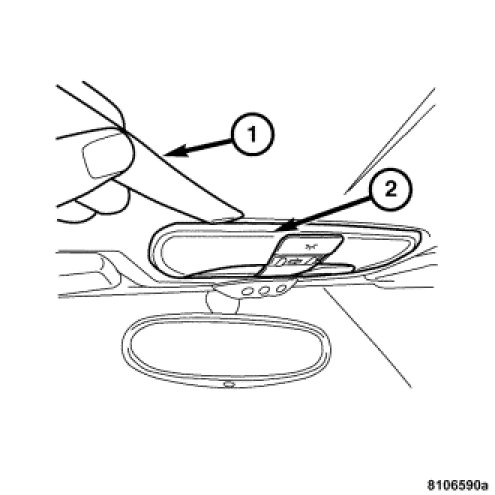

2. Using a trim stick (1), gently pry down and away from the courtesy lamp switch/unit body (2) to release the lens cover.

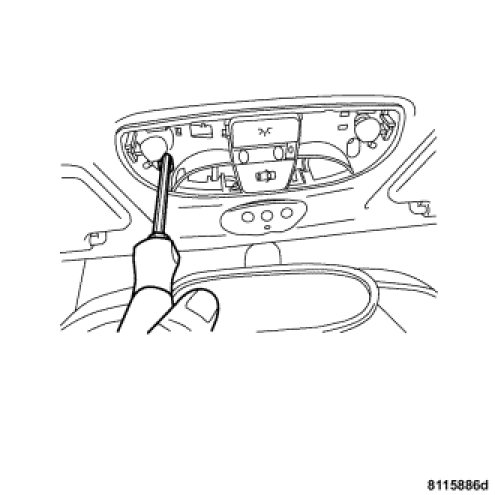

3. Remove the retaining screws.
4. Using a trim stick, gently pry and lower the courtesy lamp switch/unit from the headliner opening.
5. Disconnect the courtesy lamp switch/unit harness connector and remove from the vehicle.
