Removal

REMOVAL

WARNING: Refer to restraints before attempting any door, seat, steering wheel, steering column, or instrument panel component diagnosis or service. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.





1. Disconnect the negative battery cable.

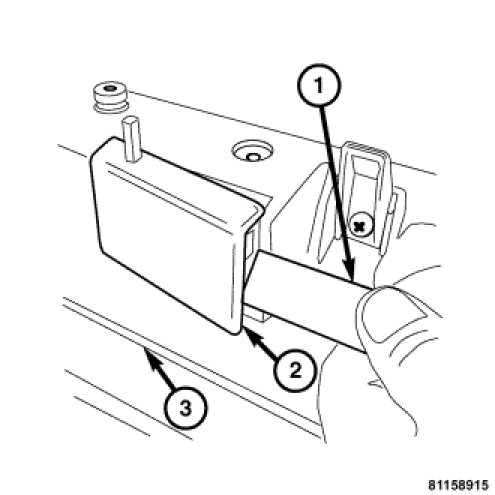

2. Open the glove box door and depress the lens retaining clips with a trim stick (1). Gently pry the glove box lamp/switch (2) from the glove box liner (3).
3. Disconnect the glove box lamp/switch harness connector and remove the glove box lamp/switch (2) from the vehicle.
