Tail Lamp Unit - Installation

INSTALLATION - TAIL/STOP LAMP

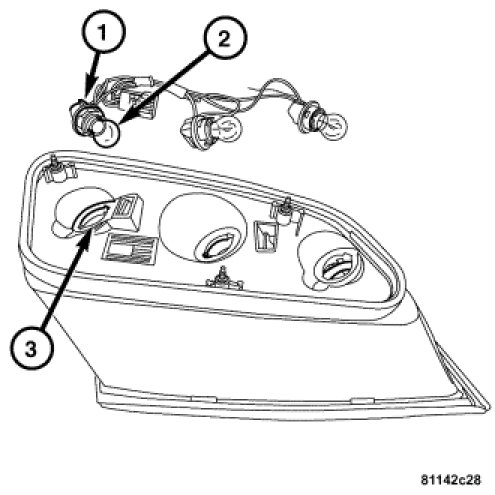

1. Install the bulb (2) into the tail/stop lamp socket (1).
2. Insert the tail/stop lamp socket (1) into the tail lamp unit (3) and rotate clockwise to lock.
3. Install the access panel into the cargo area interior trim panel.
4. Connect the negative battery cable.
