Instrument Cluster - Removal

INSTRUMENT CLUSTER - LHD









1. Disconnect the negative battery cable.
2. Remove the steering wheel.Removal.

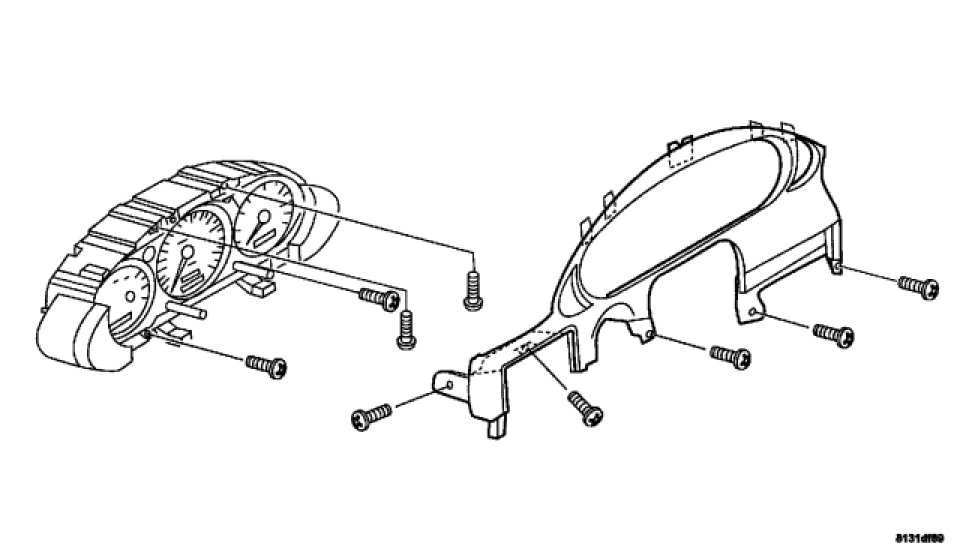

3. Remove the lower instrument panel cover (2).




4. Remove the Instrument Cluster outer bezel (1).

NOTE: To ease the removal of the Instrument Cluster outer bezel, carefully pry the bezel from the top edge to disengage the retaining tabs from the Instrument Panel.

5. Remove the retaining screws from Instrument Cluster.
6. Rotate the Instrument Cluster away from the Instrument Panel.
7. Disconnect the Instrument Cluster harness connectors from the back of the Instrument Cluster.
8. Remove the Instrument Cluster from the vehicle.
