Instrument Cluster Bulbs

INSTRUMENT CLUSTER BULBS





INSTRUMENT CLUSTER BULB REMOVAL





1. Remove the Instrument Cluster. Instrument Cluster - Removal.

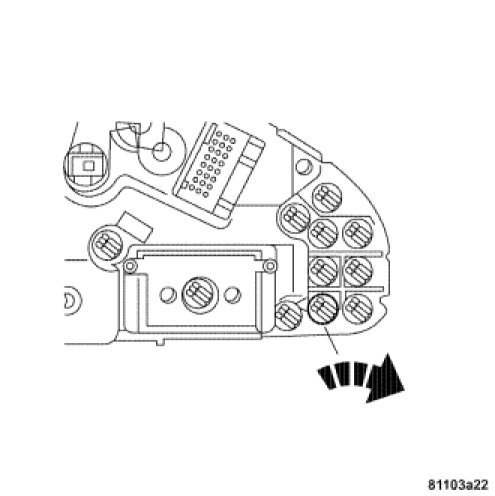

2. To remove the Instrument Cluster bulbs, turn the bulb counter clockwise and remove it from the back of the Instrument Cluster housing.

INSTRUMENT CLUSTER BULB INSTALLATION

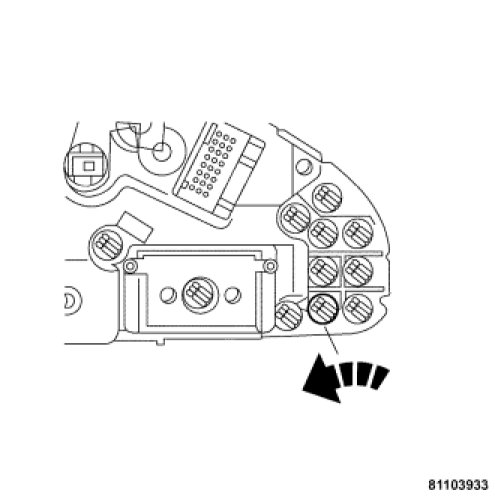

1. To install the Instrument Cluster bulbs, place the bulb into the Instrument Cluster housing back and then turn the bulb clockwise until it locks.
2. Install the Instrument Cluster. Instrument Cluster - Installation.
