Refrigerant Pressure Sensor / Switch: Diagrams

Component ID: 3
Component : A/C PRESSURE SENSOR

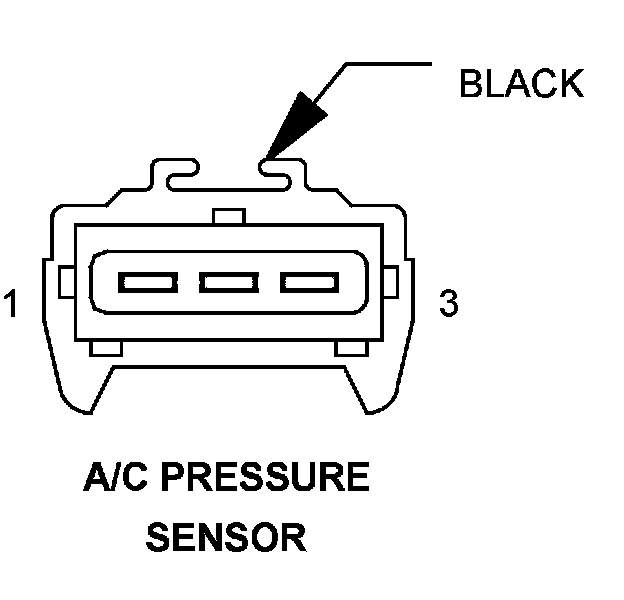

Connector:
Name : A/C PRESSURE SENSOR
Color : BLACK
# of pins : 3




Pin Circuit Description
1 18BR/YL SENSOR GROUND
2 18BL/RD A/C PRESSURE SENSOR SIGNAL
3 18RD/WT A/C PRESSURE SENSOR 5 VOLT SUPPLY
