Evaporator Temperature Sensor / Switch: Diagrams

Component ID: 91
Component : EVAPORATOR TEMPERATURE SENSOR

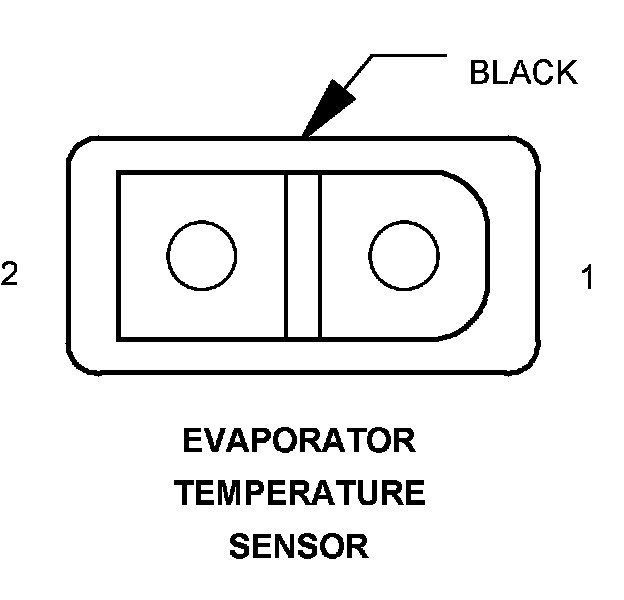

Connector:
Name : EVAPORATOR TEMPERATURE SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BR/YL SENSOR GROUND
2 22GY/RD EVAPORATOR TEMPERATURE SENSOR SIGNAL
