Ambient Temperature Sensor / Switch HVAC: Diagrams

Component ID: 9
Component : AMBIENT TEMPERATURE SENSOR

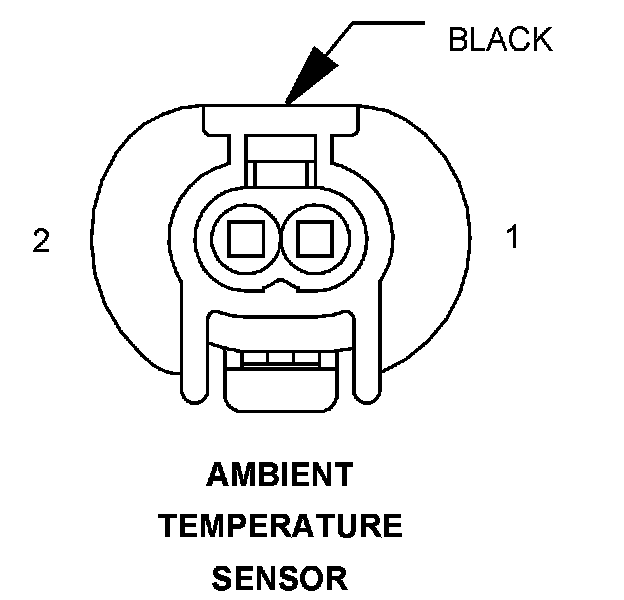

Connector:
Name : AMBIENT TEMPERATURE SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20DG AMBIENT TEMPERATURE SENSOR SIGNAL
2 20BR SENSOR GROUND
