Description

DESCRIPTION

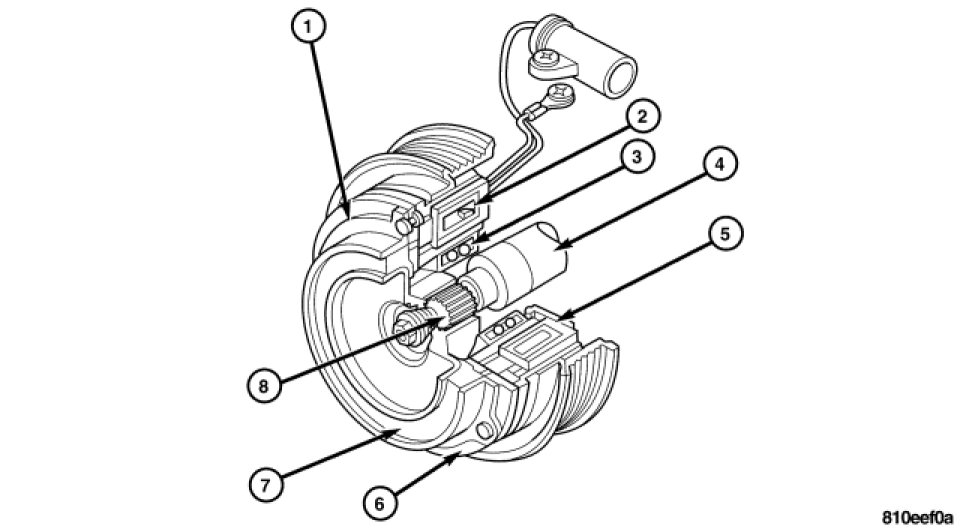

The pulley (1) on the A/C compressor drive shaft (4) is driven by the poly-V-belt. The clutch turns on the ball bearing (3) around the magnetic coil (5) fastened to the A/C compressor housing. The pressure plate (6) with rubber insert (7) is connected to the A/C compressor drive shaft (4) by splines (8) allowing it to move in the axial direction.
