Timing Components: Description and Operation

OPERATION

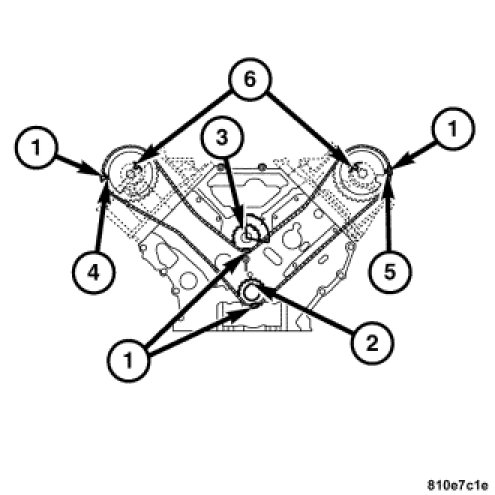

The crankshaft driven timing chain maintains camshaft (6) and balance shaft (3) operation and timing. Timing marks on the crankshaft (2) , balance shaft (3) and camshafts (5) are aligned with copper links (1) in the timing chain to keep symetrical valve and ignition performance.
