Balance Shaft - Removal

REMOVAL





1. Remove the timing chain cover. Timing Cover - Removal.




2. Rotate the crankshaft and align the basic valve timing to 40 degrees ATDC.




3. Remove the starter. Starter Motor - Removal.
4. Using Special Tool 9102 Flywheel Locking Tool (1), lock the flywheel.
5. Remove the timing chain. Removal.
6. Remove the rear crankshaft oil seal. Removal.

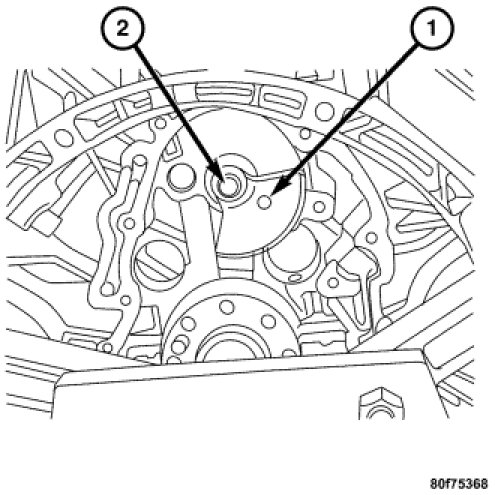

7. Hold the balance shaft rear counter weight (1) with a drift, remove the rear retaining bolt (2).
8. Remove the balance shaft rear counter weight (1) from the balance shaft.




9. Remove the balance shaft locking plate bolt (6) and locking plate at the front of the engine block.
10. Remove the balance shaft (5) from the front of the engine.
