Installation







INSTALLATION

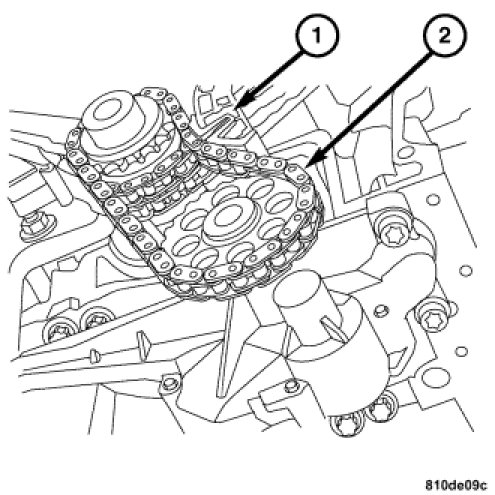

1. Check the oil pump drive chain guide for wear and replace as necessary.
2. Install the new oil pump drive chain and the oil pump.Engine Oil Pump - Installation.
3. Install the timing chain cover. Timing Cover - Installation.
