Removal

REMOVAL

1. Remove the cylinder head and place on a suitable work bench. Cylinder Head - Removal.




2. Using Special Tool C-3422-CF Valve Spring Compressor, compress the valve spring.




3. Remove the collets (1). Release the valve spring compressor and remove the valve retainer (2) and the valve spring (3) with spacer.

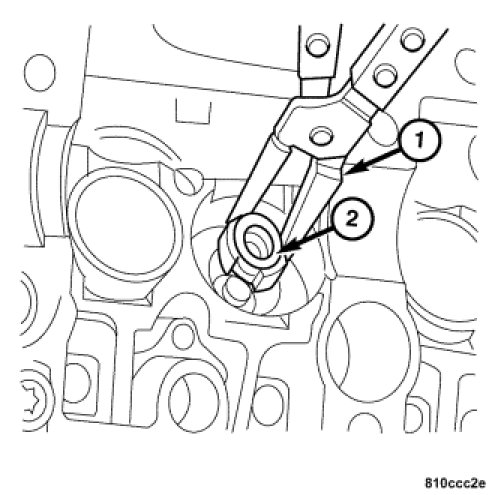

4. Using Special Tool 9106 (1) Valve Assembly Tool Case, remove the valve stem seal (2).
5. Remove the valve (4) from the cylinder head.
6. Inspect the valve face and the stem for any wear or nicks. Replace damaged valves as required.
