Installation

INSTALLATION





1. Install the valve into the cylinder head.

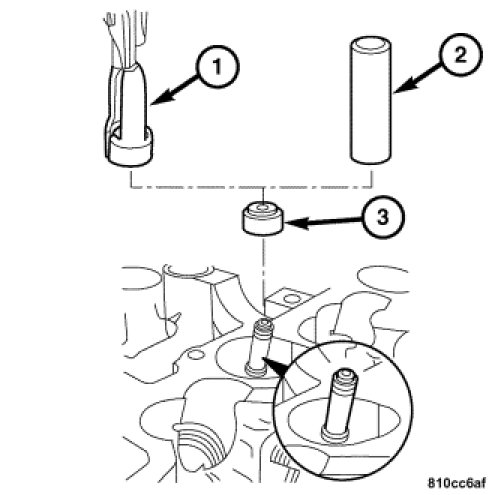

2. Install the protective sleeve (2) over valve stem.
3. Lubricate the valve stem seal before installing.
4. Using Special Tool 9106 (1) Valve Assembly Tool Case, press the valve stem seal (3) onto valve stem.
5. Remove the protective sleeve (2).

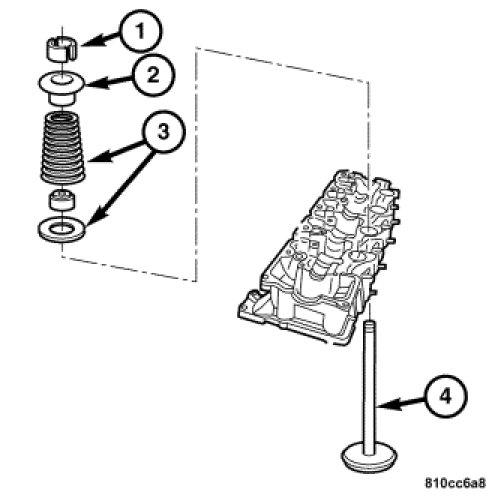

6. Install the valve spring spacer, the spring (3), and the valve spring retainer (2), over the valve stem (4).

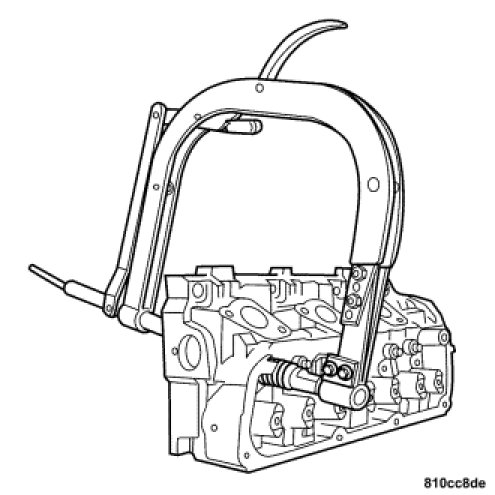

7. Using Special Tool C-3422-CF Valve Spring Compressor, compress the valve spring and install the collets (1).
8. Repeat the process for each valve.
9. Install the cylinder head. Cylinder Head - Installation.
