Cylinder Head - Inspection

INSPECTION





1. Before cleaning, check for leaks, damage and cracks.
2. Clean the cylinder head coolant and oil passages.

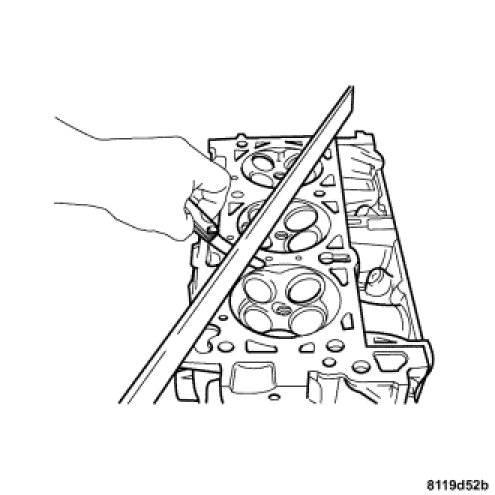

3. Check the cylinder head for flatness.

CAUTION: 0.20 mm (0.008 in.) MAX is a combined total dimension of the stock removal limit from cylinder head and block top surface (Deck) together.

4. The cylinder head must be flat within:
- Standard dimension = less than 0.002 in. (0.05 mm)
- Service Limit = 0.008 in. (0.2 mm)
- Grinding Limit = Maximum of 0.008 in. (0.2 mm) is permitted.
