Radiator Cooling Fan Inoperative
*RADIATOR COOLING FAN INOPERATIVE
For a complete Radiator Cooling Fan Circuit Diagram, [1][2]Electrical Diagrams.
Diagnostic Test
1. ACTUATE RADIATOR COOLING FAN WITH SCAN TOOL
Turn the ignition on.
With the scan tool, actuate the Radiator Cooling Fan.
Is the Radiator Cooling Fan operating?
Yes
- Replace the Powertrain Control Module. Powertrain Control Module - Removal
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
No
- Go to 2
2. CHECKING THE PCM FOR AN OPEN
Turn the ignition off.
Disconnect the Powertrain Control Module C4 harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Turn the ignition on.

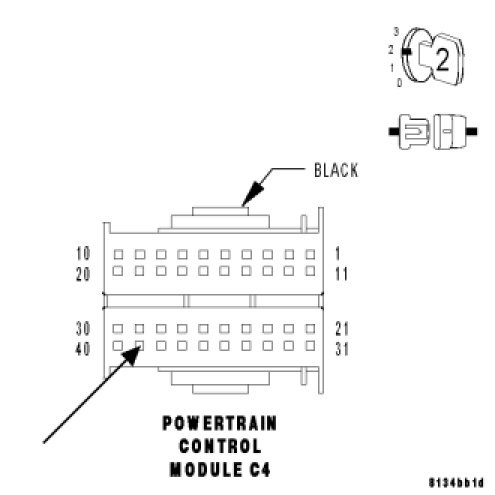

Connect a jumper wire between ground and the Radiator Fan Control circuit at cavity 39 of the PCM C4 harness connector.
Is the Radiator Cooling Fan operating?
Yes
- Replace the Powertrain Control Module. Powertrain Control Module - Removal
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
No
- Go to 3
3. CHECKING THE FUSED B(+) CIRCUIT
Turn the ignition off.
Disconnect the Radiator Fan Control Module harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Turn the ignition on.

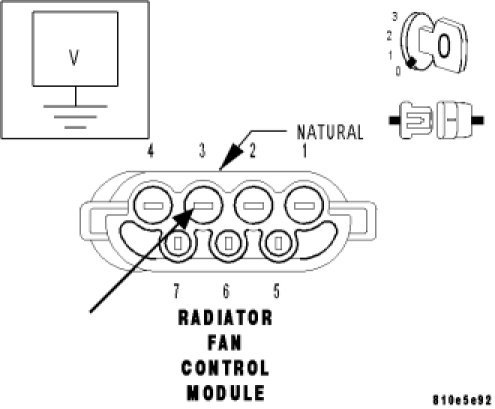

Measure the voltage of the Fused B(+) circuit at the Radiator Fan Control Module harness connector.
Is the voltage above 11 volts?
Yes
- Go to 4
No
- Repair the Fused B(+) circuit for an open.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
4. CHECKING THE GROUND CIRCUIT
Turn the ignition off.
Measure the resistance between ground and the module Ground circuit.
Is the resistance below 5.0 ohms?
Yes
- Go to 5
No
- Repair the module Ground circuit for an open.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
5. CHECKING THE RADIATOR FAN CONTROL CIRCUIT
With the ignition off.
Disconnect the Powertrain Control Module (PCM) C4 harness connector.
NOTE: Check connectors - Clean/repair as necessary.

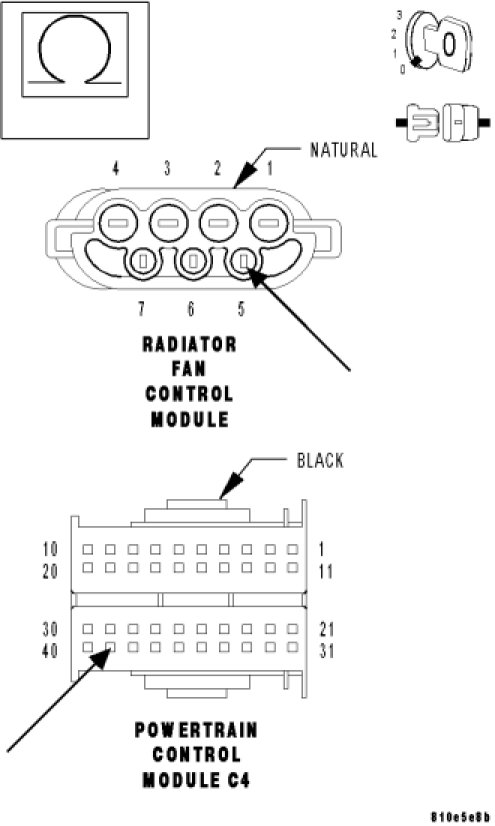

Measure the resistance of the Radiator Fan Control circuit from the Radiator Fan Control Module harness connector to the PCM harness connector.
Is the resistance below 5.0 ohms?
Yes
- Go to 6
No
- Repair the Radiator Fan Control circuit for an open.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
6. CHECKING THE RADIATOR FAN CONTROL MODULE OUTPUT CIRCUIT
With the ignition off.
Disconnect the Radiator Fan Motor harness connector.
NOTE: Check connectors - Clean/repair as necessary.

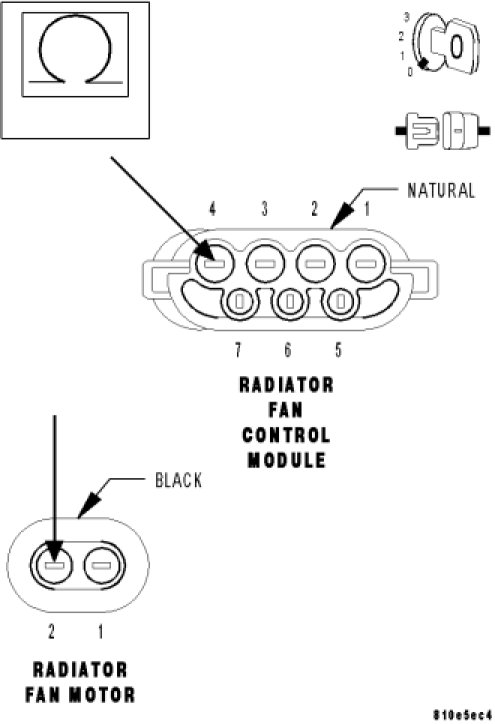

Measure the resistance of the Radiator Fan Control Module Output circuit from the Radiator Fan Control Module harness connector to the Radiator Fan Motor harness connector.
Is the resistance below 5.0 ohms?
Yes
- Go to 7
No
- Repair the Radiator Fan Control Module Output circuit for an open.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
7. CHECKING THE RADIATOR FAN CONTROL MODULE GROUND CIRCUIT
With the ignition off.

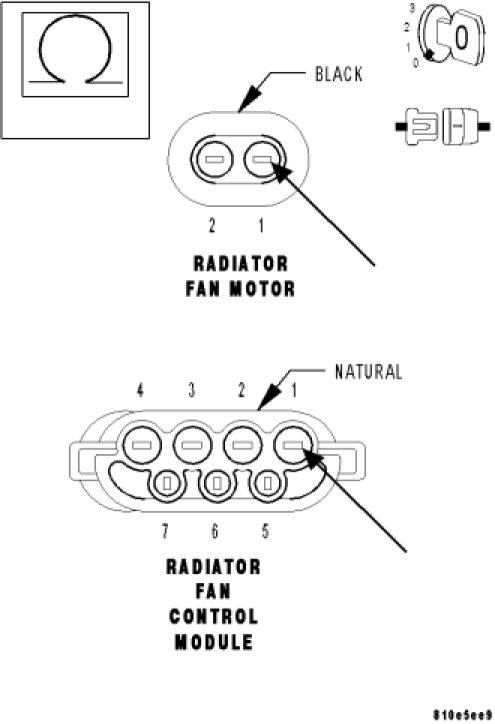

Measure the resistance of the Radiator Fan Control Module Ground circuit from the Radiator Fan Control Module harness connector to the Radiator Fan Motor harness connector.
Is the resistance below 5.0 ohms?
Yes
- Go to 8
No
- Repair the Radiator Fan Control Module Ground circuit for an open.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
8. CHECKING THE RADIATOR FAN MOTOR
With the ignition off.

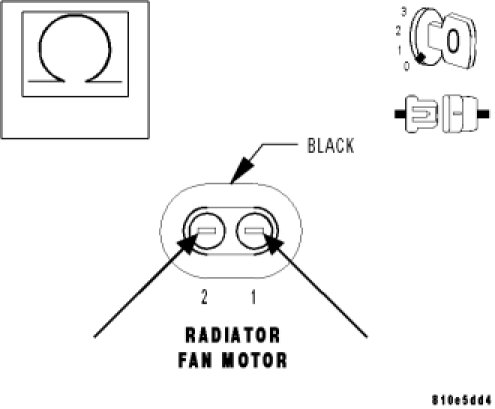

Measure the resistance of the Radiator Fan Motor.
Is the resistance below 5.0 ohms?
Yes
- Replace the Radiator Fan Control Module. Removal
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
No
- Replace the Radiator Fan Motor. Radiator Fan - Removal
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
