Radiator Cooling Fan Always On

*RADIATOR COOLING FAN ALWAYS ON

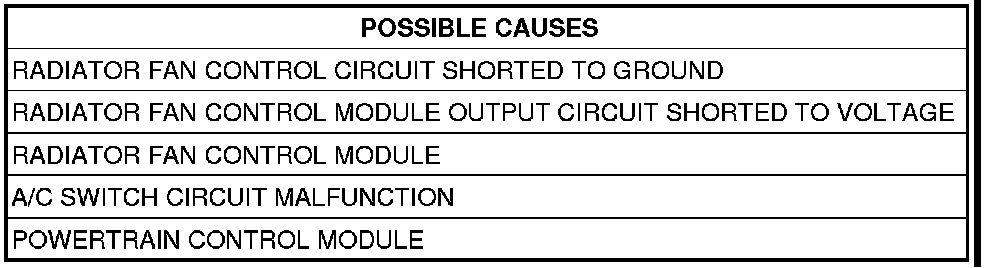

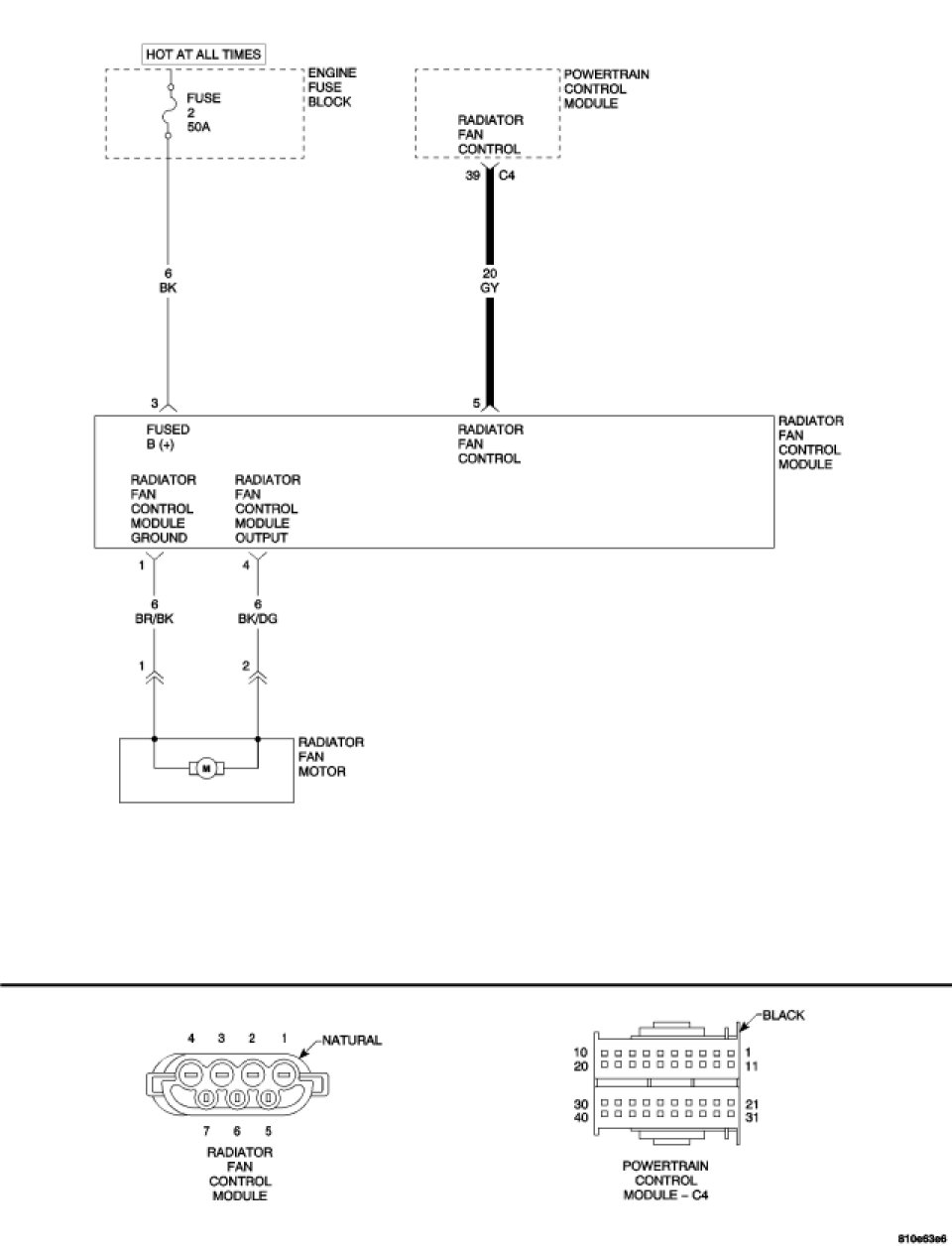

For a complete Radiator Cooling Fan Circuit Diagram, [1][2]Electrical Diagrams.

Diagnostic Test

1. CHECKING SCAN TOOL FOR A/C SWITCH STATUS
Turn the ignition on.
Insure that the A/C Switch is off.
With the scan tool in Inputs/Outputs, check the status of the A/C Switch.
Does the scan tool display Air Conditioning ON?

Yes

- Repair the A/C Switch circuit.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test

No

- Go to 2

2. CHECKING THE RADIATOR FAN CONTROL MODULE OUTPUT CIRCUIT




Turn the ignition off.
Disconnect the Radiator Fan Control Module harness connector.
Disconnect the Radiator Fan Motor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.
Measure the voltage on the Radiator Fan Control Module Output circuit.
Is the voltage below 1.0 volt?

Yes

- Go to 3

No

- Repair the Radiator Fan Control Module Output circuit for a short to voltage.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test

3. CHECKING THE RADIATOR FAN CONTROL CIRCUIT




Turn the ignition off.

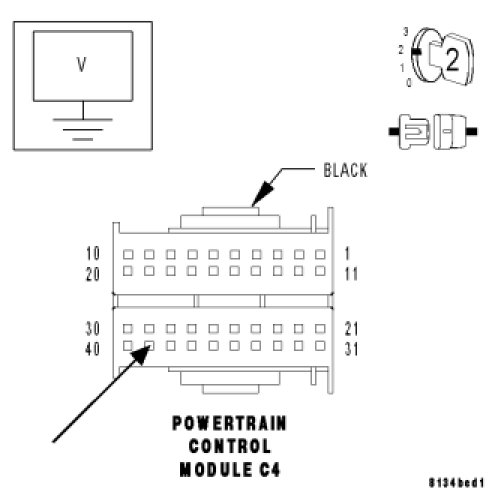

Disconnect the Powertrain Control Module (PCM) C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance between ground and the Radiator Fan Control circuit.
Is the resistance above 100 kohms?

Yes

- Go to 4

No

- Repair the Radiator Fan Control circuit for a short to ground.
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test

4. CHECKING THE POWERTRAIN CONTROL MODULE




With the ignition off.
Reconnect the PCM C4 harness connector.

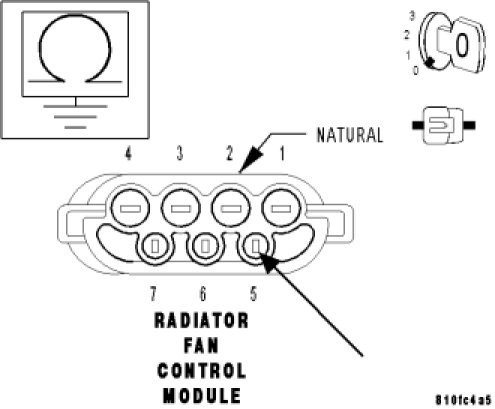

Measure the resistance between ground and the Radiator Fan Control circuit at the Radiator Fan Control Module harness connector.
Is the resistance above 100 kohms?

Yes

- Replace the Radiator Fan Control Module. Removal
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test

No

- Replace the Powertrain Control Module. Powertrain Control Module - Removal
- Perform POWERTRAIN VERIFICATION TEST - VER 3. Powertrain Verification Test
