Connector Views

Component ID: 235

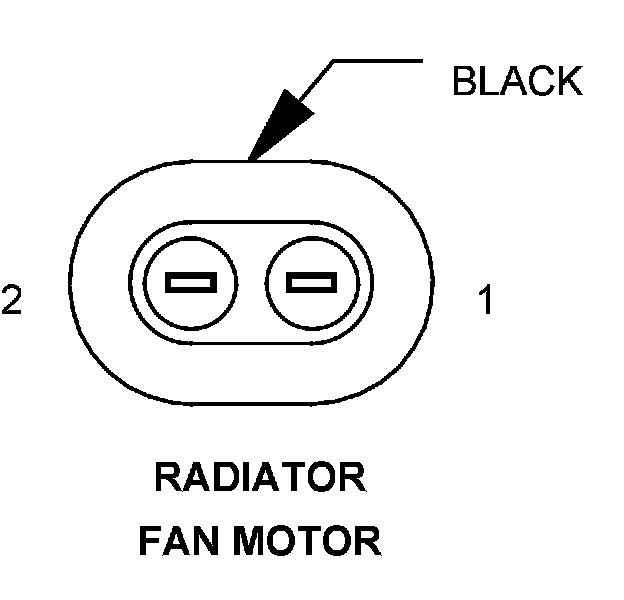

Component : RADIATOR FAN MOTOR

Connector:
Name : RADIATOR FAN MOTOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 8BR/BK RADIATOR FAN CONTROL MODULE GROUND
2 8BK/DG RADIATOR FAN CONTROL MODULE OUTPUT
