Schematics and Diagrams







SCHEMATICS AND DIAGRAMS

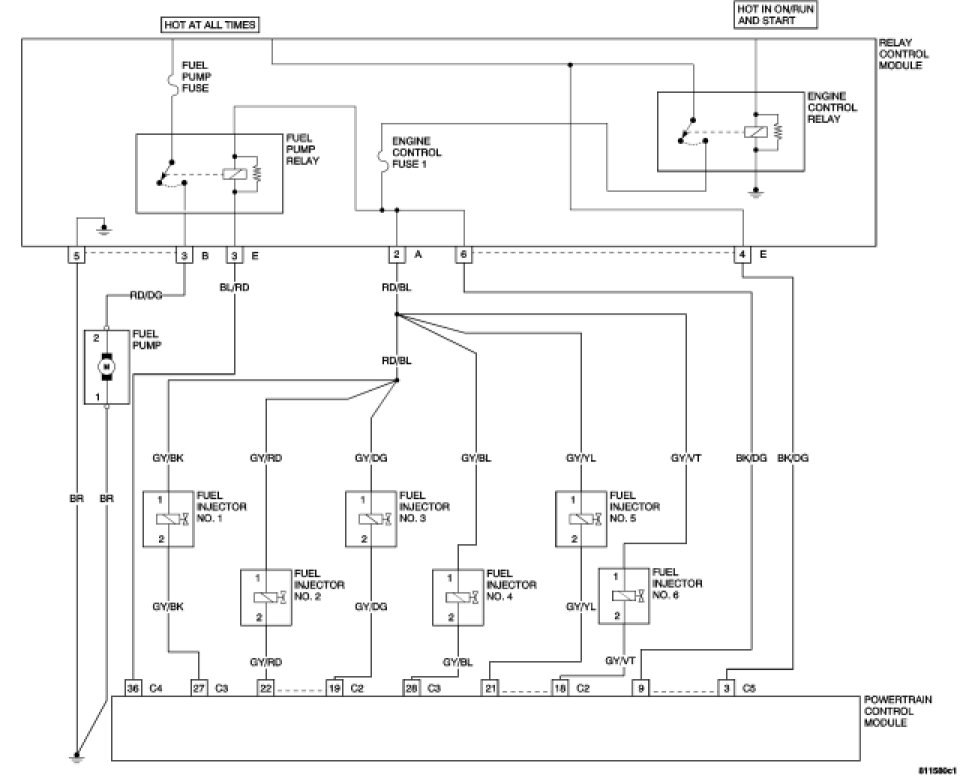

POWERTRAIN CONTROL MODULE CIRCUIT DIAGRAM (1 OF 7)

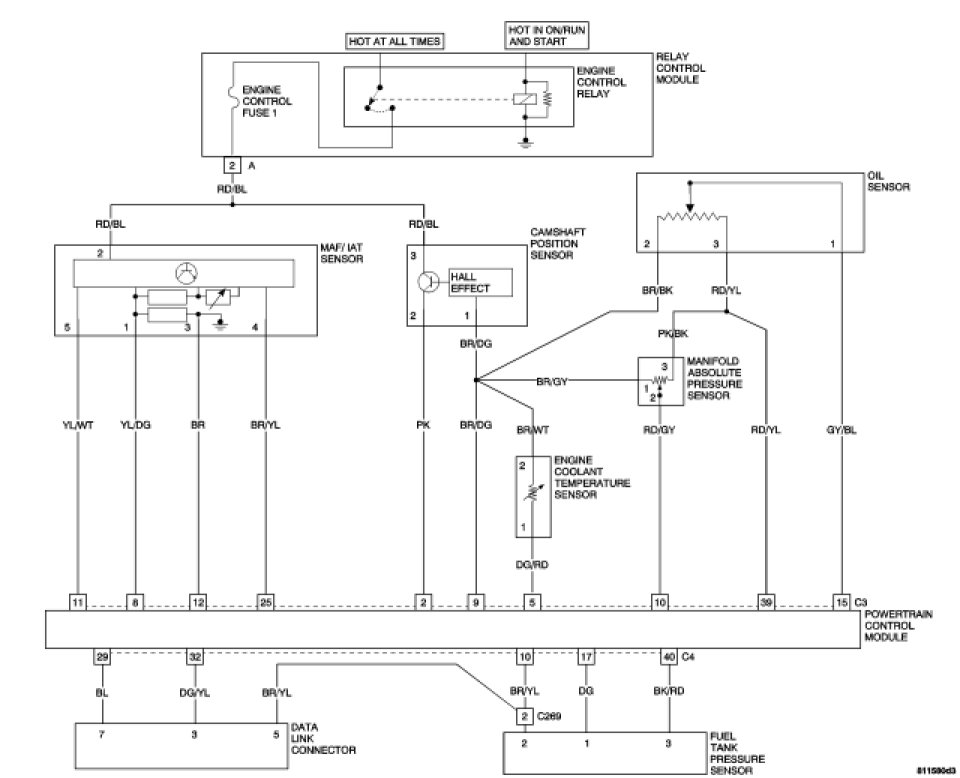

POWERTRAIN CONTROL MODULE CIRCUIT DIAGRAM (2 OF 7)

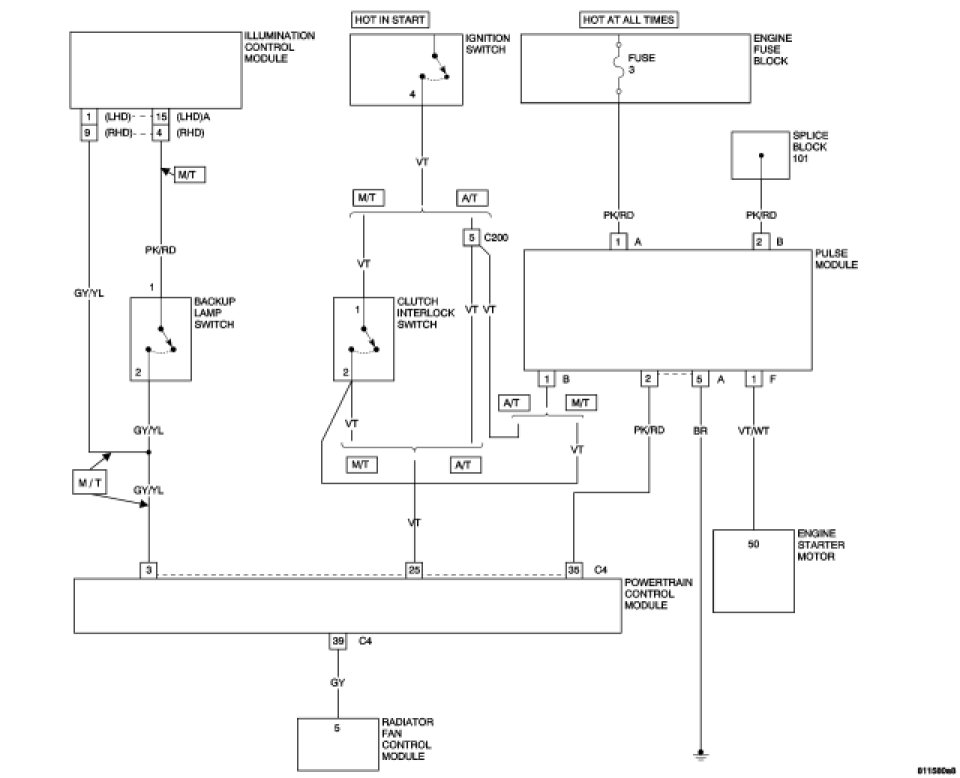

POWERTRAIN CONTROL MODULE CIRCUIT DIAGRAM (3 OF 7)

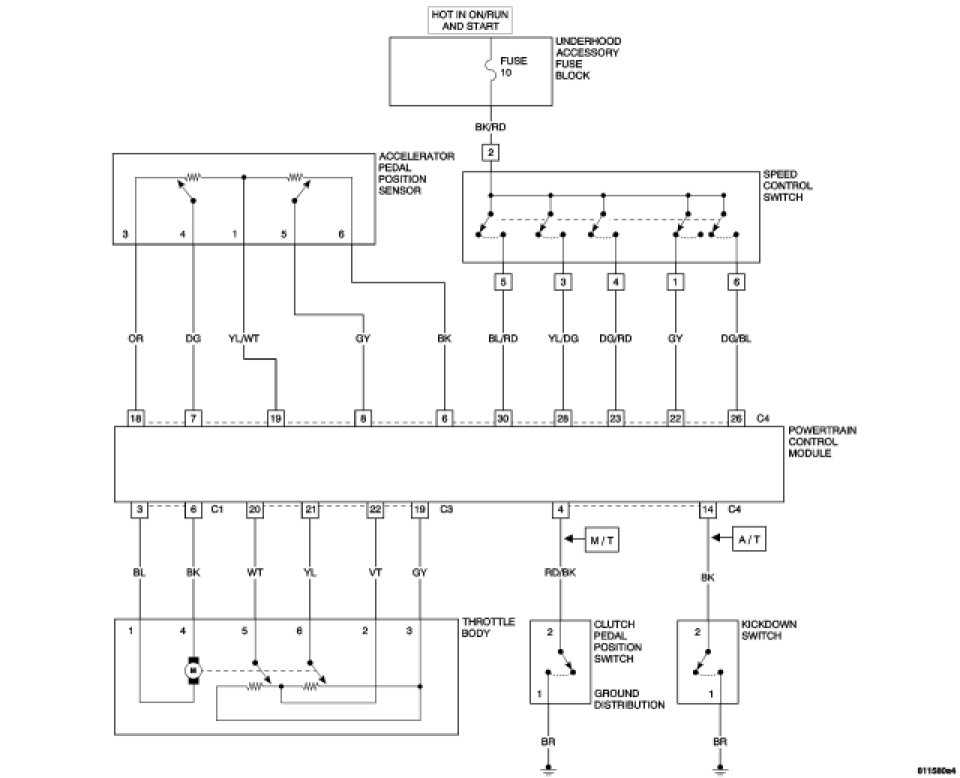

POWERTRAIN CONTROL MODULE CIRCUIT DIAGRAM (4 OF 7)

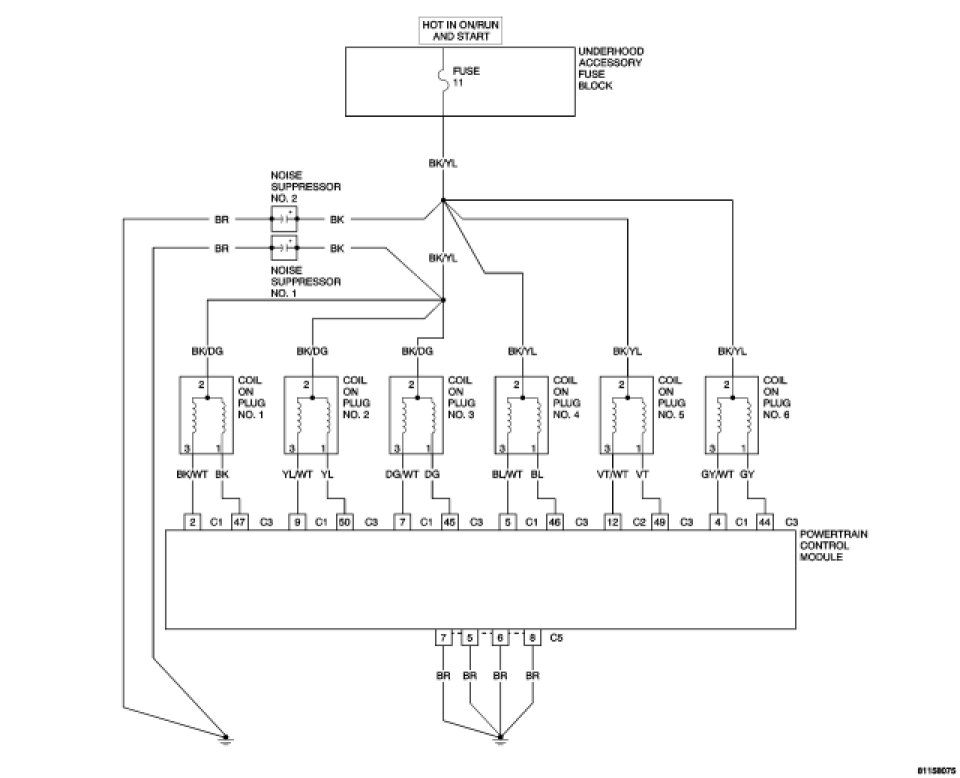

POWERTRAIN CONTROL MODULE CIRCUIT DIAGRAM (5 OF 7)

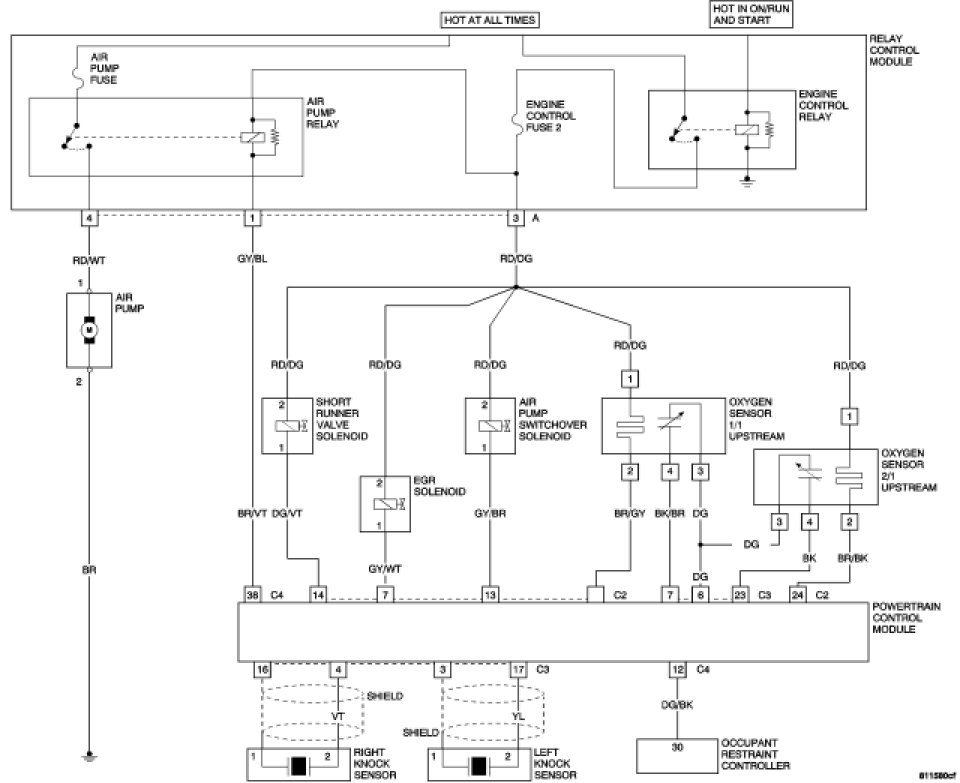

POWERTRAIN CONTROL MODULE CIRCUIT DIAGRAM (6 OF 7)




POWERTRAIN CONTROL MODULE CIRCUIT DIAGRAM (7 OF 7)
