Schematics and Diagrams







SCHEMATICS AND DIAGRAMS

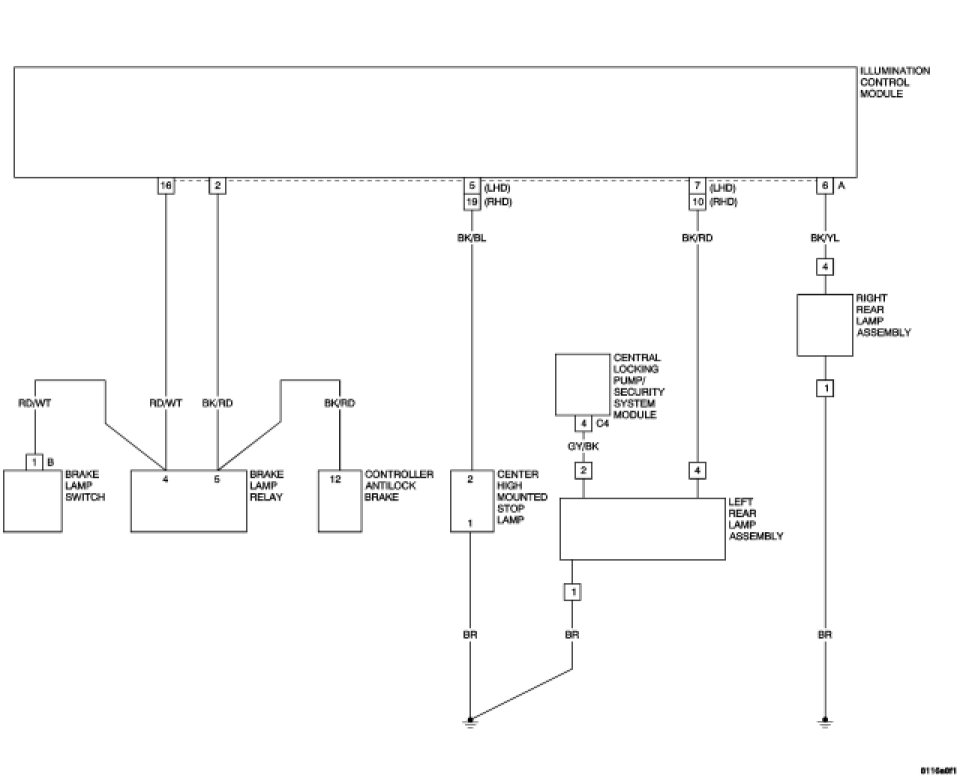

EXTERIOR LIGHTING CIRCUIT DIAGRAM (1 OF 6)

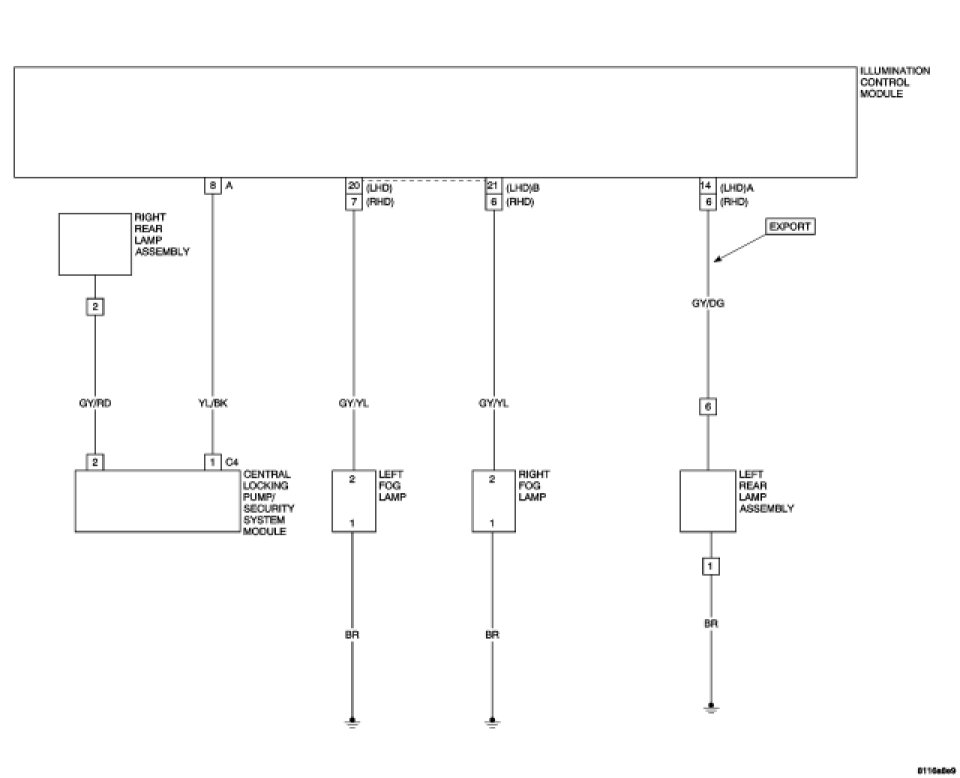

EXTERIOR LIGHTING CIRCUIT DIAGRAM (2 OF 6)




EXTERIOR LIGHTING CIRCUIT DIAGRAM (3 OF 6)

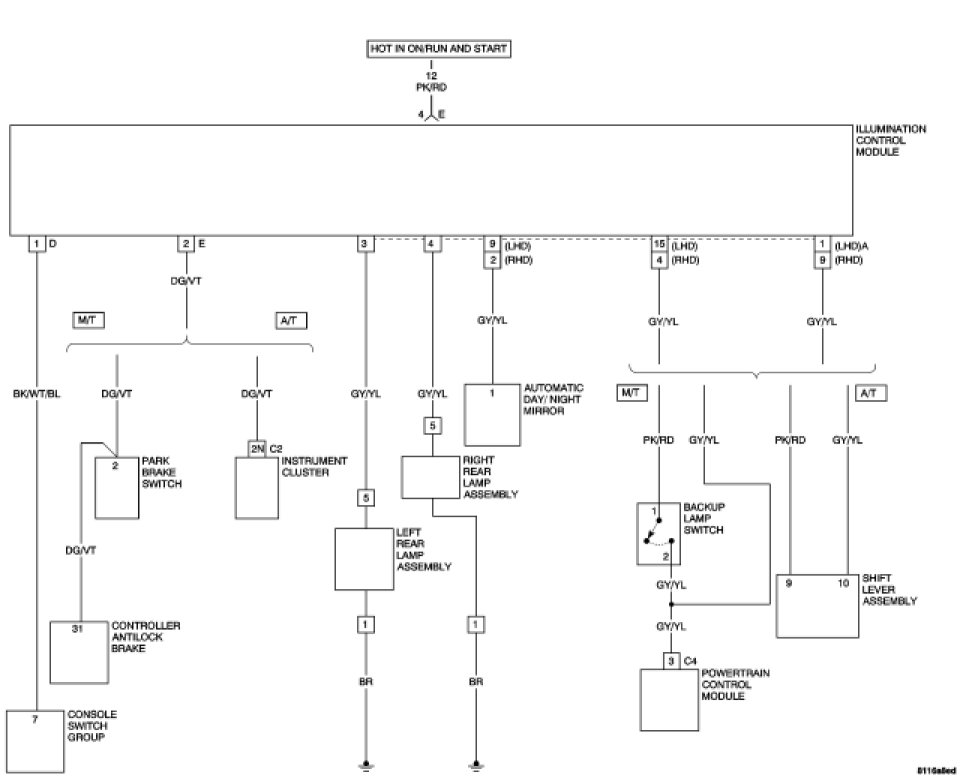

EXTERIOR LIGHTING CIRCUIT DIAGRAM (4 OF 6)

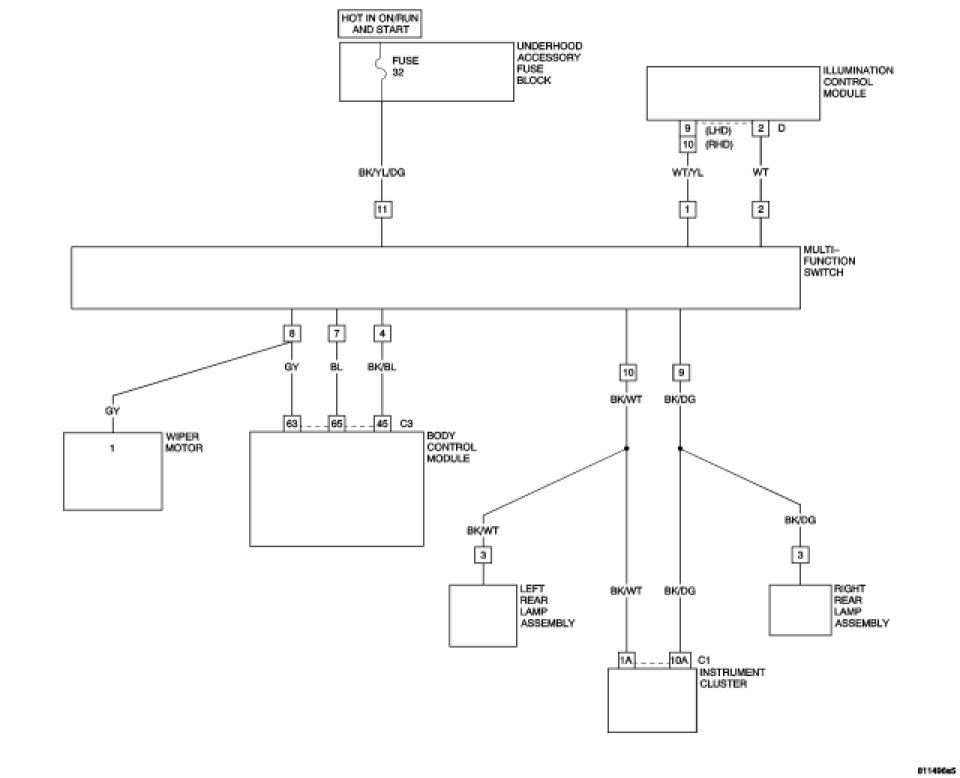

EXTERIOR LIGHTING CIRCUIT DIAGRAM (5 OF 6)

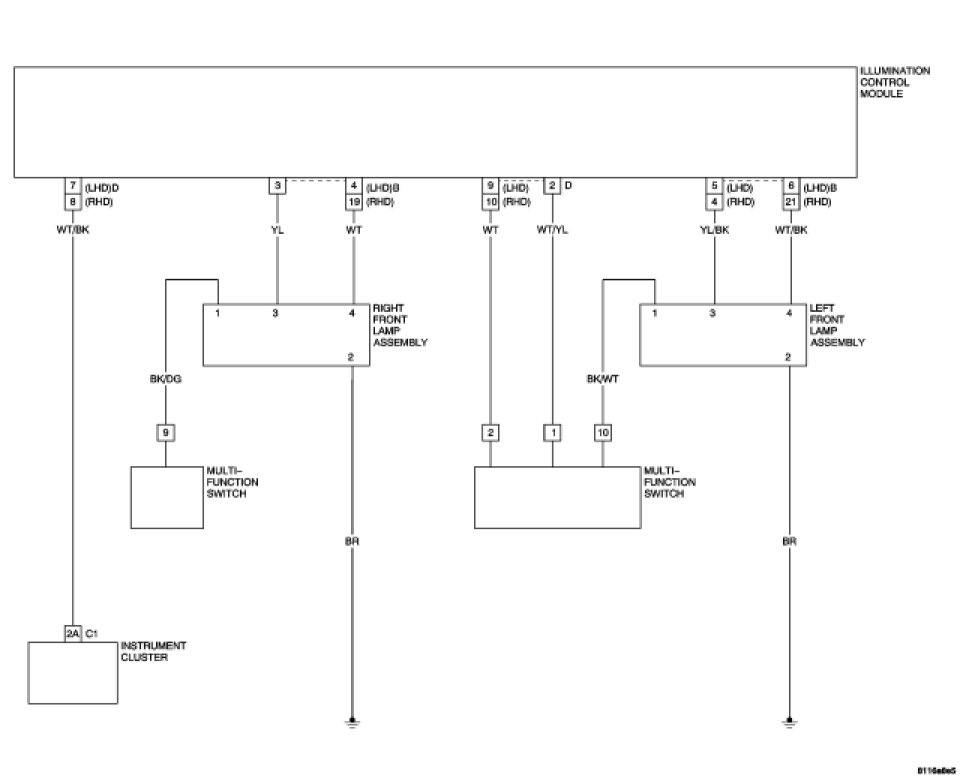

EXTERIOR LIGHTING CIRCUIT DIAGRAM (6 OF 6)
