Tire Monitoring System

Component ID: 351
Component : UNIVERSAL GARAGE DOOR OPENER/TIRE PRESSURE MONITOR

Connector:

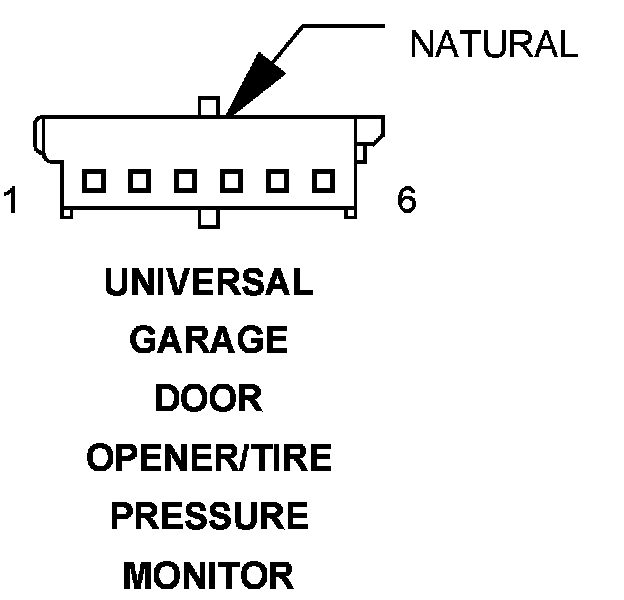

Name : UNIVERSAL GARAGE DOOR OPENER/TIRE PRESSURE MONITOR
Color : NATURAL
# of pins : 6




Pin Circuit Description
1 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
2 20GY/YL LOW TIRE PRESSURE WARNING INDICATOR CONTROL
3 20BR GROUND
4 20BK/BL SCI TRANSMIT
5 20RD/GY FUSED B(+)
6 - -

Component Location - 1
