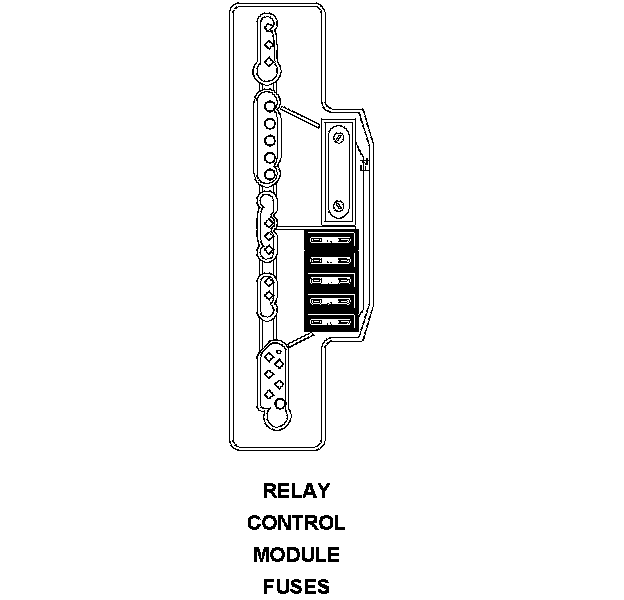

Relay Control Module Fuses

Component ID: 244
Component : RELAY CONTROL MODULE FUSES

Connector:
Name : RELAY CONTROL MODULE FUSES
Color :
# of pins : 0




Pin Circuit Description
1 INTERNAL FUSED B(+)
2 INTERNAL FUSED ENGINE CONTROL RELAY OUTPUT
3 INTERNAL FUSED ENGINE CONTROL RELAY OUTPUT
4 INTERNAL FUSED B(+)
5 INTERNAL FUSED B(+)
6 INTERNAL FUSED B(+)
