Illumination Control Module

Component ID: 165
Component : ILLUMINATION CONTROL MODULE

Connector:
Name : ILLUMINATION CONTROL MODULE A
Color : BLACK
# of pins : 21




Pin Circuit Description
1 20GY/YL SHIFT LEVER ASSEMBLY REVERSE SUPPLY VOLTAGE
Pin Circuit Description
1 20GY/YL BACKUP LAMP SWITCH OUTPUT
Pin Circuit Description
1 18RD/WT FUSED IGNITION SWITCH OUTPUT
2 18BK/RD BRAKE LAMP RELAY OUTPUT
2 20GY/YL BACKUP LAMP SWITCH OUTPUT
3 18GY/YL SHIFT LEVER ASSEMBLY REVERSE SUPPLY VOLTAGE
3 18GY/YL BACKUP LAMP SWITCH OUTPUT
4 18GY/YL SHIFT LEVER ASSEMBLY REVERSE SUPPLY VOLTAGE
4 18GY/YL BACKUP LAMP SWITCH OUTPUT
4 20PK/RD FUSED IGNITION SWITCH OUTPUT
5 20BK/BL BRAKE LAMP RELAY OUTPUT
6 18BK/YL BRAKE LAMP RELAY OUTPUT
6 18GY/DG FUSED ILLUMINATION CONTROL MODULE OUTPUT
7 18BK/RD BRAKE LAMP RELAY OUTPUT
8 14YL/BK FOG LAMP SWITCH OUTPUT
9 20GY/YL SHIFT LEVER ASSEMBLY REVERSE SUPPLY VOLTAGE
9 20GY/YL BACKUP LAMP SWITCH OUTPUT
10 18DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
10 18BK/RD BRAKE LAMP RELAY OUTPUT
11 18GY/RD FUSED RIGHT STANDING/PARK LAMPS OUTPUT
11 18BK/RD BRAKE LAMP RELAY OUTPUT
12 18GY/VT FUSED ILLUMINATION CONTROL MODULE OUTPUT
13 18GY/YL FUSED ILLUMINATION CONTROL MODULE OUTPUT
14 18GY/DG REAR FOG LAMP SWITCH OUTPUT
14 18GY/BK FUSED LEFT STANDING/PARK LAMPS OUTPUT
15 20PK/RD FUSED IGNITION SWITCH OUTPUT
16 18RD/WT FUSED IGNITION SWITCH OUTPUT
16 18GY/YL SHIFT LEVER ASSEMBLY REVERSE SUPPLY VOLTAGE
16 18GY/YL BACKUP LAMP SWITCH OUTPUT
17 - -
18 18GY/BK FUSED LEFT STANDING/PARK LAMPS OUTPUT
18 18DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
19 18BL/BR FUSED LEFT STANDING/PARK LAMPS OUTPUT
19 20BK/BL BRAKE LAMP RELAY OUTPUT
20 18BK/YL BRAKE LAMP RELAY OUTPUT
21 18BK/VT FUSED RIGHT STANDING/PARK LAMPS OUTPUT
21 18GY/RD FUSED RIGHT STANDING/PARK LAMPS OUTPUT

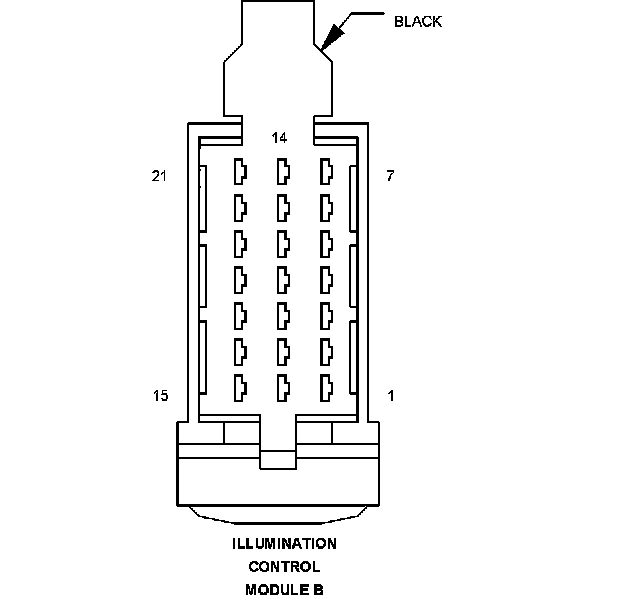

Connector:
Name : ILLUMINATION CONTROL MODULE B
Color : BLACK
# of pins : 21




Pin Circuit Description
1 - -
2 - -
3 16YL FUSED LOW BEAM OUTPUT
4 16WT FUSED HIGH BEAM OUTPUT
4 16YL/BK FUSED LOW BEAM OUTPUT
5 16YL/BK FUSED LOW BEAM OUTPUT
5 18GY/RD FUSED ILLUMINATION CONTROL MODULE OUTPUT
6 16WT/BK FUSED HIGH BEAM OUTPUT
6 18GY/YL FUSED FOG LAMP OUTPUT
7 18GY/RD FUSED ILLUMINATION CONTROL MODULE OUTPUT
7 18GY/YL FUSED FOG LAMP OUTPUT
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 18DG FUSED ILLUMINATION CONTROL MODULE OUTPUT
15 - -
16 - -
17 - -
18 18DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
19 18GY/BK FUSED ILLUMINATION CONTROL MODULE OUTPUT
19 16WT FUSED HIGH BEAM OUTPUT
20 18GY/YL FUSED FOG LAMP OUTPUT
20 18GY/BK FUSED ILLUMINATION CONTROL MODULE OUTPUT
21 18GY/YL FUSED FOG LAMP OUTPUT
21 16WT/BK FUSED HIGH BEAM OUTPUT

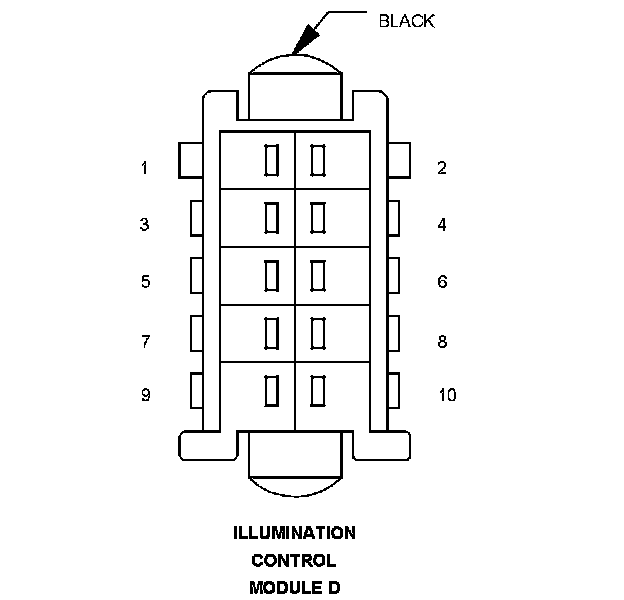

Connector:
Name : ILLUMINATION CONTROL MODULE D
Color : BLACK
# of pins : 10




Pin Circuit Description
1 16BK/WT/BL FUSED IGNITION SWITCH OUTPUT
2 16WT/YL HEADLAMP SUPPLY
3 18DG/WT FUSED IGNITION SWITCH OUTPUT
3 20BL/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
4 20BR/BK FUSED ILLUMINATION CONTROL MODULE OUTPUT
4 18DG/WT FUSED IGNITION SWITCH OUTPUT
5 16BR GROUND
5 20BR/BK FUSED ILLUMINATION CONTROL MODULE OUTPUT
6 20BL/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
6 16BR GROUND
7 20WT/BK HIGH BEAM INDICATOR LAMP
8 20WT/BK HIGH BEAM INDICATOR LAMP
9 16WT HEADLAMP HIGH BEAM SUPPLY
9 18GY FUSED ILLUMINATION CONTROL MODULE OUTPUT
10 18GY FUSED ILLUMINATION CONTROL MODULE OUTPUT
10 16WT HEADLAMP HIGH BEAM SUPPLY

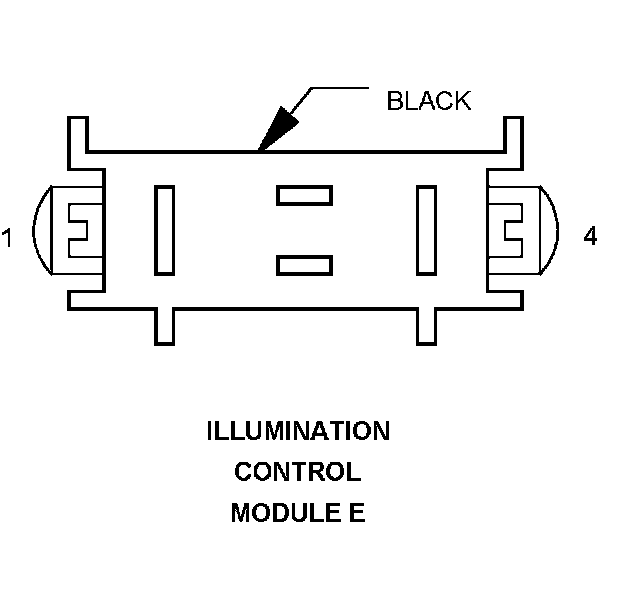

Connector:
Name : ILLUMINATION CONTROL MODULE E
Color : BLACK
# of pins : 4




Pin Circuit Description
1 12RD FUSED B(+)
2 20DG/VT PARK BRAKE SWITCH SENSE
3 - -
4 12PK/RD FUSED IGNITION SWITCH OUTPUT
