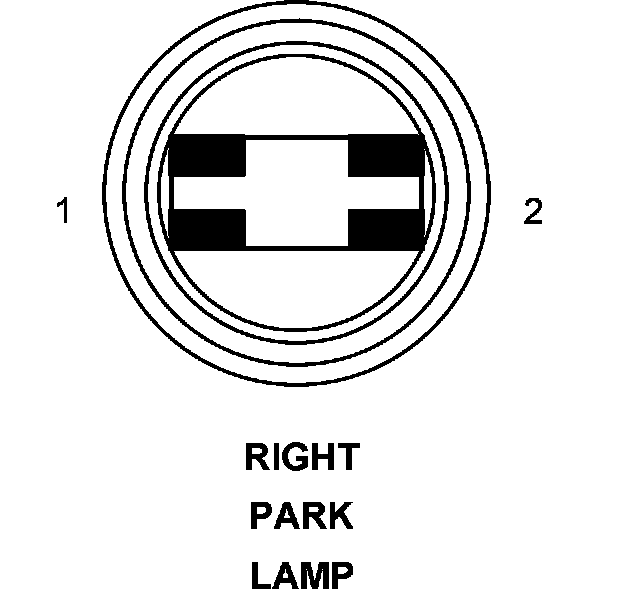

Right Park Lamp

Component ID: 263
Component : RIGHT PARK LAMP

Connector:
Name : RIGHT PARK LAMP
Color :
# of pins : 2




Pin Circuit Description
1 18BR GROUND
2 18DG FUSED ILLUMINATION CONTROL MODULE OUTPUT
2 18GY/RD FUSED ILLUMINATION CONTROL MODULE OUTPUT
