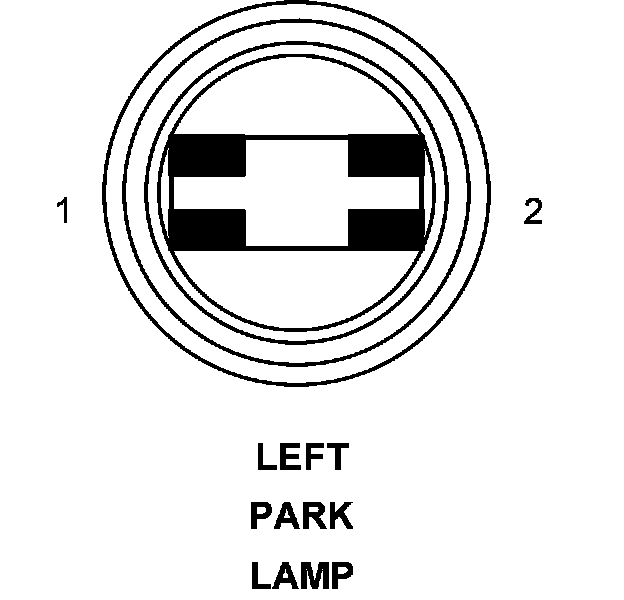

Left Park Lamp

Component ID: 188
Component : LEFT PARK LAMP

Connector:
Name : LEFT PARK LAMP
Color :
# of pins : 2




Pin Circuit Description
1 18BR GROUND
2 18DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
2 18GY/BK FUSED ILLUMINATION CONTROL MODULE OUTPUT
