Right Rear Side Marker Lamp

Component ID: 266

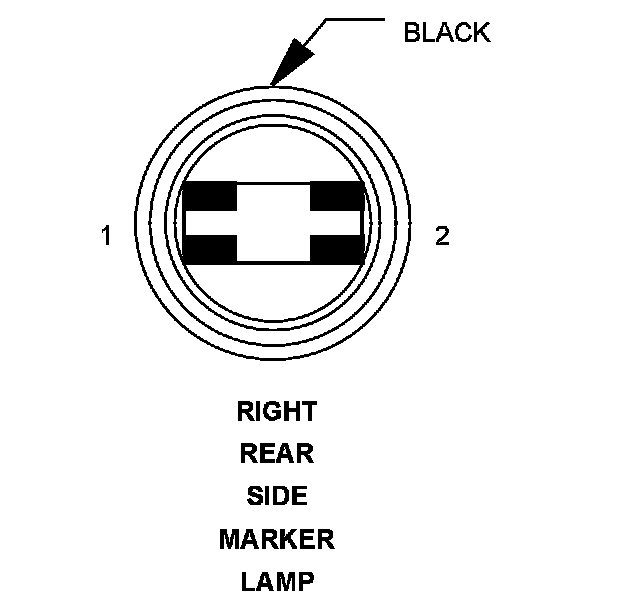

Component : RIGHT REAR SIDE MARKER LAMP

Connector:
Name : RIGHT REAR SIDE MARKER LAMP
Color : BLACK
# of pins : 2




Pin Circuit Description
1 18BR GROUND
2 18BK/VT FUSED RIGHT STANDING/PARK LAMPS OUTPUT

Component Location - 22
