Center Mounted Brake Lamp

Component ID: 47

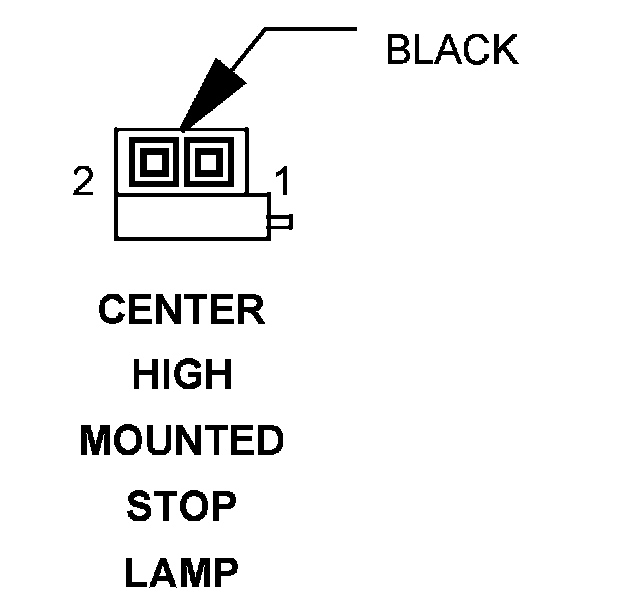

Component : CENTER HIGH MOUNTED STOP LAMP

Connector:
Name : CENTER HIGH MOUNTED STOP LAMP
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BR GROUND
2 20BK/BL BRAKE LAMP RELAY OUTPUT
