Right Rear Lamp Assembly

Component ID: 265
Component : RIGHT REAR LAMP ASSEMBLY

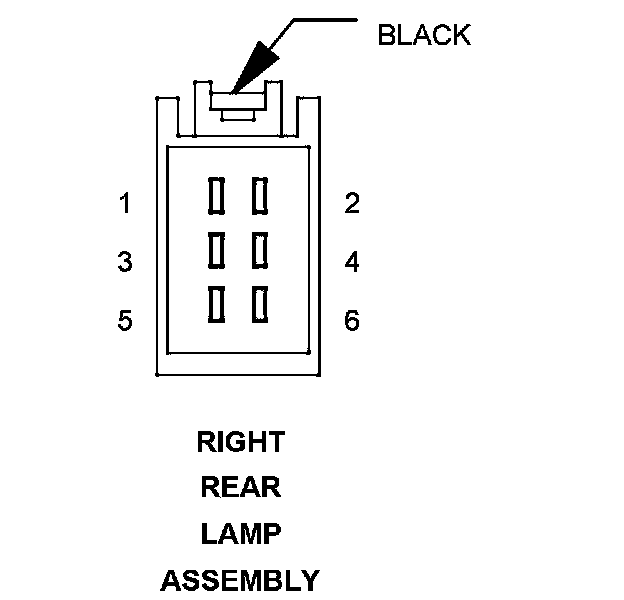

Connector:
Name : RIGHT REAR LAMP ASSEMBLY
Color : BLACK
# of pins : 6




Pin Circuit Description
1 18BR GROUND
2 18GY/RD FUSED STANDING/PARK LAMPS OUTPUT
2 18GY/RD RIGHT TAIL LAMP OUTPUT
3 18BK/DG RIGHT TURN SIGNAL OUTPUT
4 18BK/YL BRAKE LAMP RELAY OUTPUT
5 18GY/YL BACKUP LAMP SWITCH OUTPUT
6 - -

Component Location - 22
