Keyless Entry Module

Component ID: 330
Component : SENTRY KEY REMOTE ENTRY MODULE

Connector:

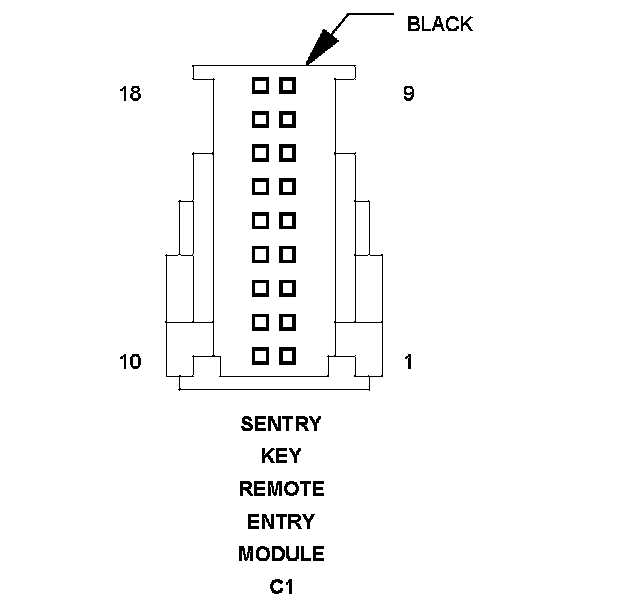

Name : SENTRY KEY REMOTE ENTRY MODULE C1
Color : BLACK
# of pins : 18




Pin Circuit Description
1 22GY/BK DOOR UNLOCK SWITCH SENSE
2 20BK/YL REMOTE KEYLESS ENTRY RELAY CONTROL
3 22GY/RD RKE STATUS OUTPUT
4 - -
5 - -
6 22WT RKE ANTENNA
7 SHIELD SHIELD
8 20BK DRIVER CYLINDER LOCK SWITCH SENSE (UNLOCK)
9 20BL DRIVER CYLINDER LOCK SWITCH SENSE (LOCK)
10 18PK/RD/BL FUSED IGNITION SWITCH OUTPUT
11 22BK/RD DOOR LOCK SWITCH SENSE
12 - -
13 - -
14 - -
15 - -
16 18BR GROUND
17 22BK/WT SCI TRANSMIT
18 20RD/YL FUSED B(+)

Component Location - 1






Connector:

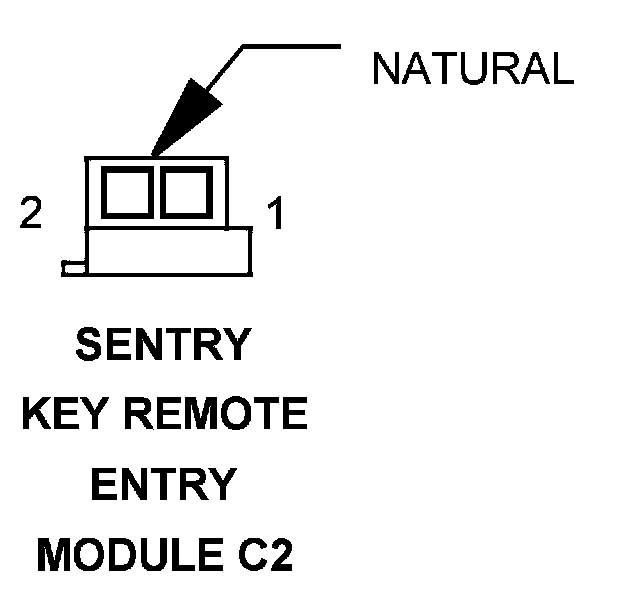

Name : SENTRY KEY REMOTE ENTRY MODULE C2
Color : NATURAL
# of pins : 2




Pin Circuit Description
1 20DG CAN C BUS (-)
2 20WT CAN C BUS (+)

Component Location - 1






Connector:

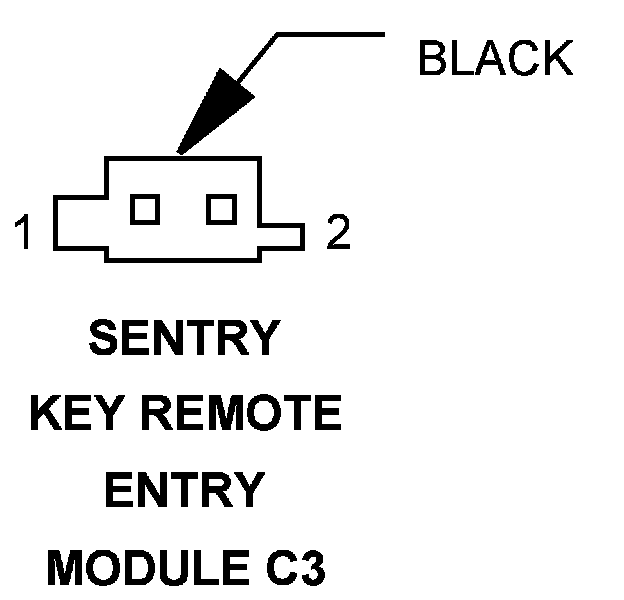

Name : SENTRY KEY REMOTE ENTRY MODULE C3
Color : BLACK
# of pins : 2




Pin Circuit Description
1 16BK SENTRY KEY ANTENNA
2 SHIELD SHIELD

Component Location - 1
