Coolant Temperature Sensor/Switch (For Computer)

Component ID: 83
Component : ENGINE COOLANT TEMPERATURE SENSOR

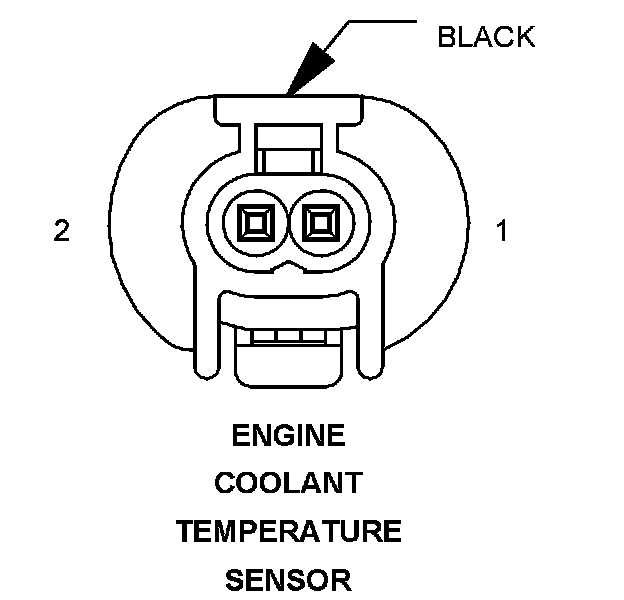

Connector:
Name : ENGINE COOLANT TEMPERATURE SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20DG/RD ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 20BR/WT SENSOR GROUND

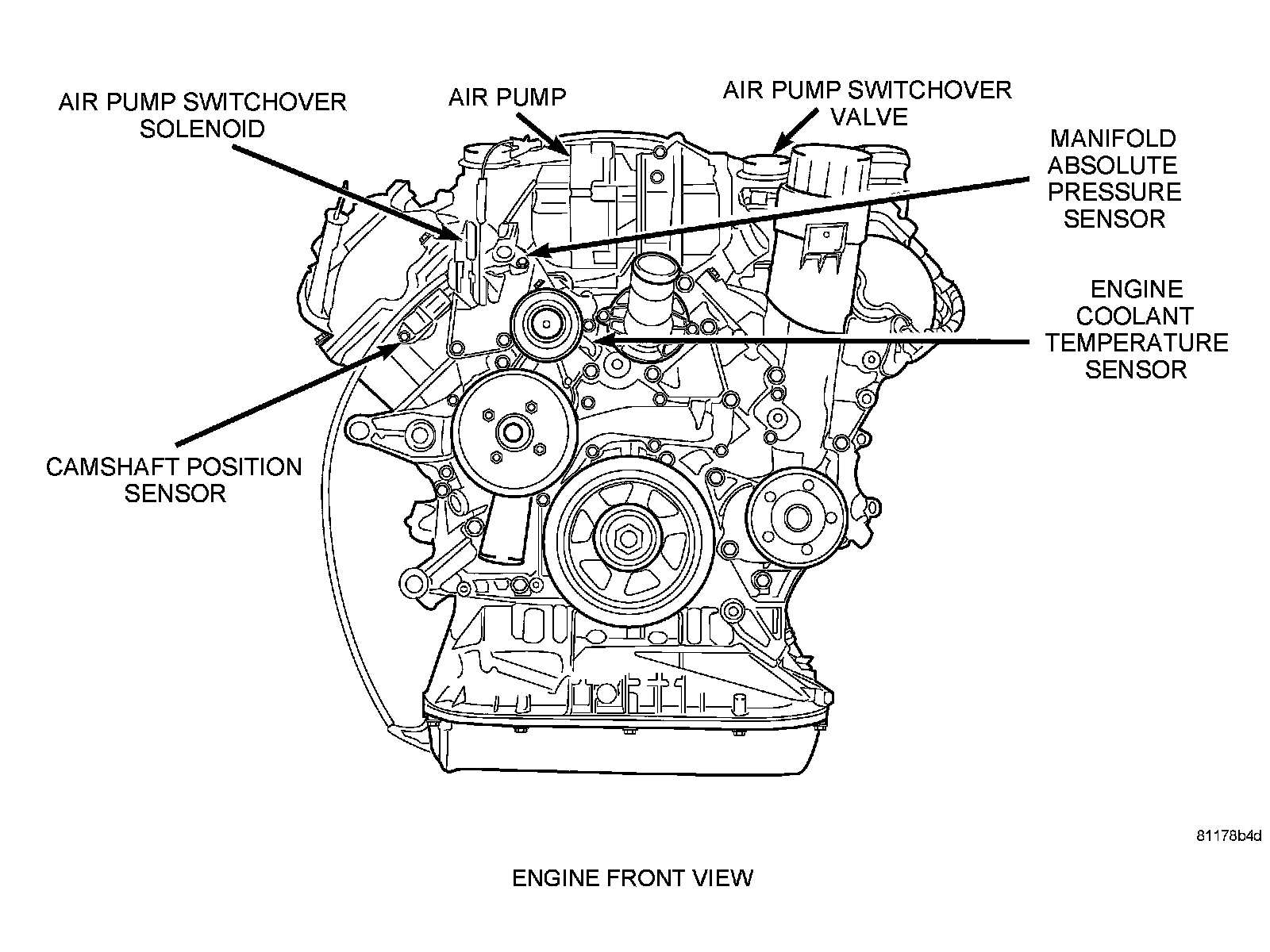

Component Location - 8
