Convertible Top Control Module

Component ID: 228
Component : POWER TOP CONTROL MODULE

Connector:

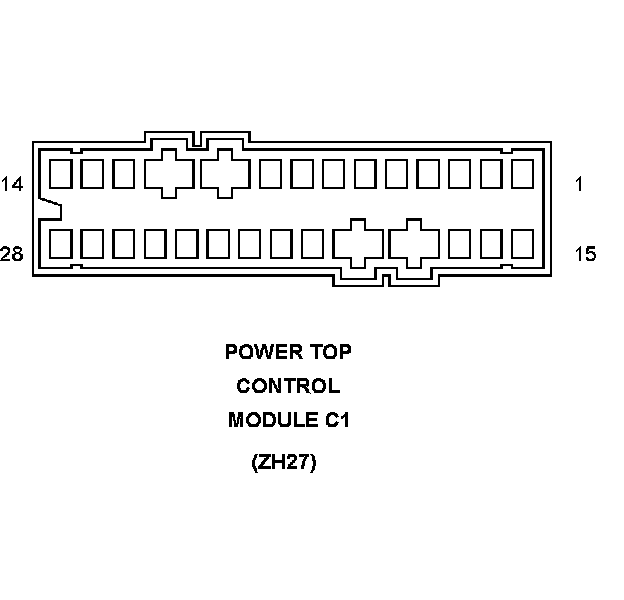

Name : POWER TOP CONTROL MODULE C1
Color :
# of pins : 28
Qualifier : (ZH27)




Pin Circuit Description
1 20WT REAR BOW CYLINDER TRAVEL SENSOR (ROD) +
2 20GY REAR BOW CYLINDER TRAVEL SENSOR (BASE) +
3 - -
4 20DG MAIN CYLINDER TRAVEL SENSOR (ROD) +
5 20GY/OR REAR BOW SENSE
6 20YL MAIN CYLINDER TRAVEL SENSOR (BASE) +
7 20BR/BL ROOF/CARGO DIVIDER SENSE
8 20WT/VT POWER TOP SWITCH SIGNAL
9 - -
10 14RD/YL FUSED B(+)
11 14BR GROUND
12 - -
13 20WT CAN B BUS (+)
14 20DG CAN B BUS (-)
15 - -
16 20DG/WT LATCH RETAINER SWITCH SENSE
17 20BR/DG TONNEAU COVER SWITCH SENSE
18 16RD/DG TRUNK LATCH ACTUATOR UNLOCK CONTROL
19 16BK/DG TRUNK LATCH ACTUATOR LOCK CONTROL
20 20BR/YL POWER TOP SWITCH INDICATOR DRIVER
21 20BR/VT TRUNK LATCH LOCKED SIGNAL
22 20BK/VT TRUNK LATCH UNLOCKED SIGNAL
23 20YL/RD MAIN CYLINDER TRAVEL SENSOR (BASE) -
24 20DG/YL MAIN CYLINDER TRAVEL SENSOR (ROD) -
25 - -
26 20GY/VT REAR BOW CYLINDER TRAVEL SENSOR (BASE) -
27 20WT/YL REAR BOW CYLINDER TRAVEL SENSOR (ROD) -
28 20DG SCI TRANSMIT

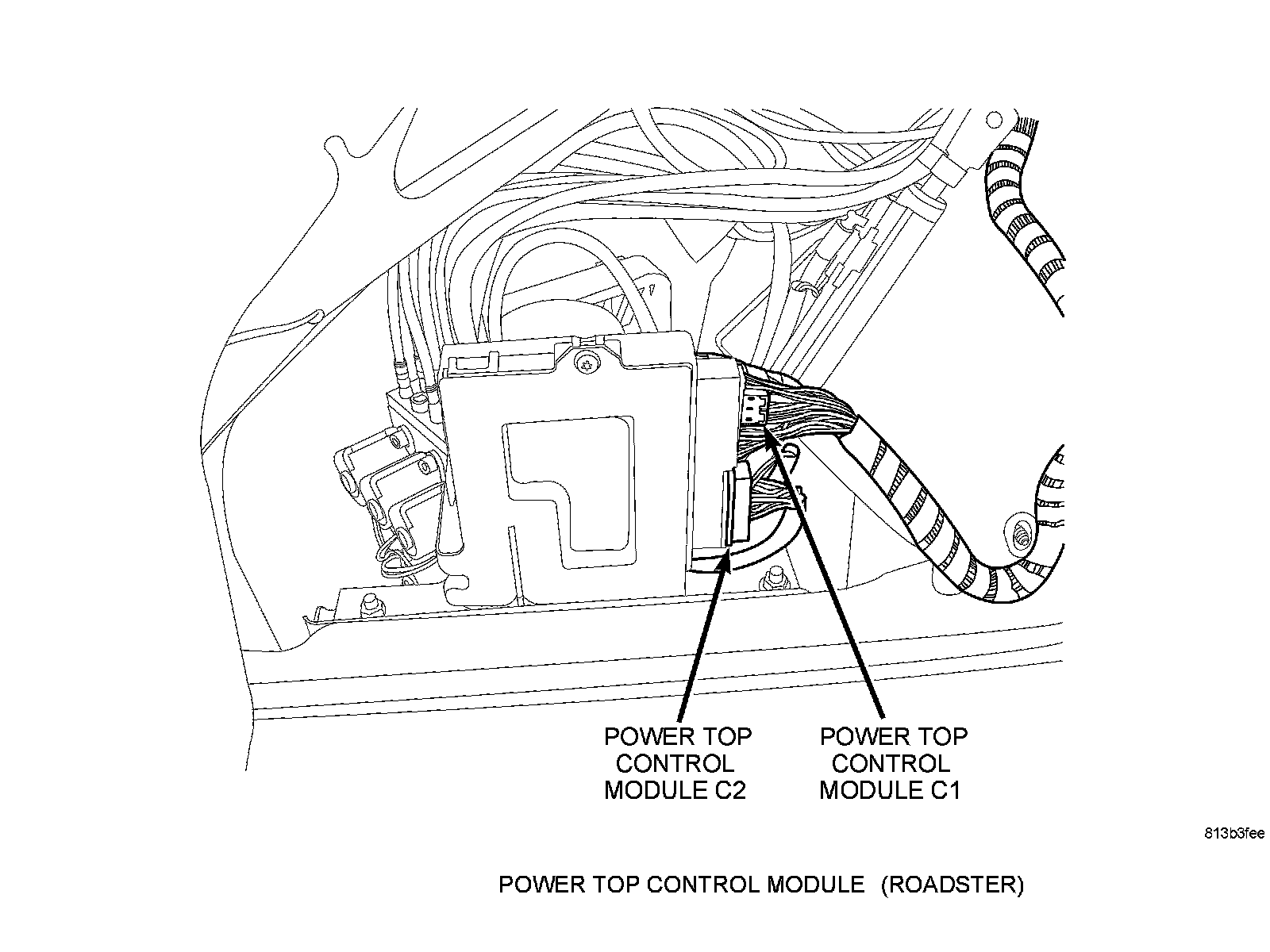

Component Location - 18






Connector:

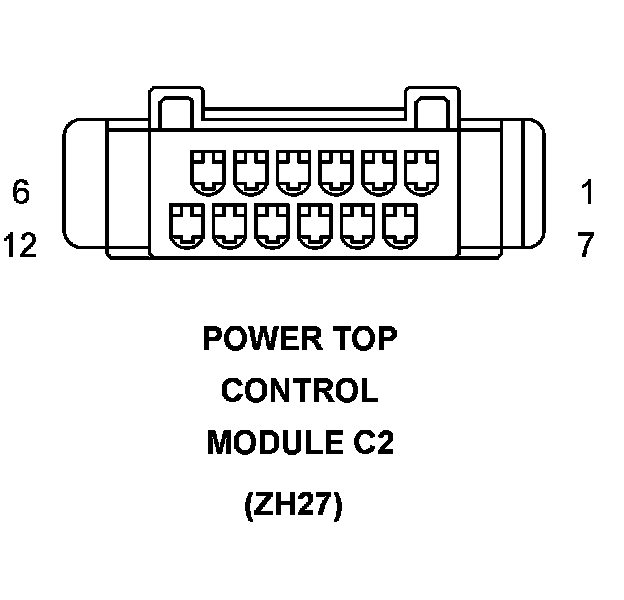

Name : POWER TOP CONTROL MODULE C2
Color :
# of pins : 12
Qualifier : (ZH27)




Pin Circuit Description
1 BR TONNEAU COVER TRAVEL SENSOR (-)
2 RD TONNEAU COVER TRAVEL SENSOR (+)
3 BK S3/S4 SOLENOID GROUND
4 BK S1/S2 SOLENOID GROUND
5 BK ROTATION RELAY GROUND
6 - -
7 GY S4 SOLENOID SUPPLY VOLTAGE
8 YL S3 SOLENOID SUPPLY VOLTAGE
9 OR S2 SOLENOID SUPPLY VOLTAGE
10 BL S1 SOLENOID SUPPLY VOLTAGE
11 BR RIGHT ROTATION RELAY CONTROL
12 DG LEFT ROTATION RELAY CONTROL

Component Location - 18
