Control Module, A/T

Component ID: 346
Component : TRANSMISSION CONTROL MODULE

Connector:

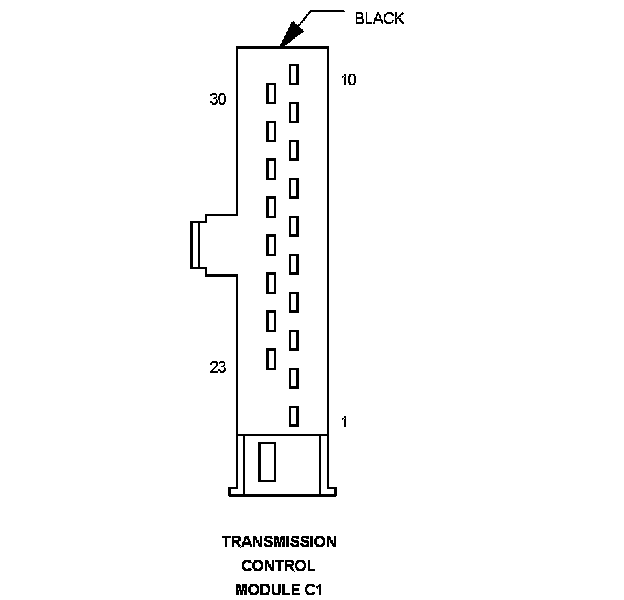

Name : TRANSMISSION CONTROL MODULE C1
Color : BLACK
# of pins : 18




Pin Circuit Description
1 22DG SCI TRANSMIT
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 18RD/DG TRACTION SYSTEM RELAY OUTPUT
30 18BR GROUND

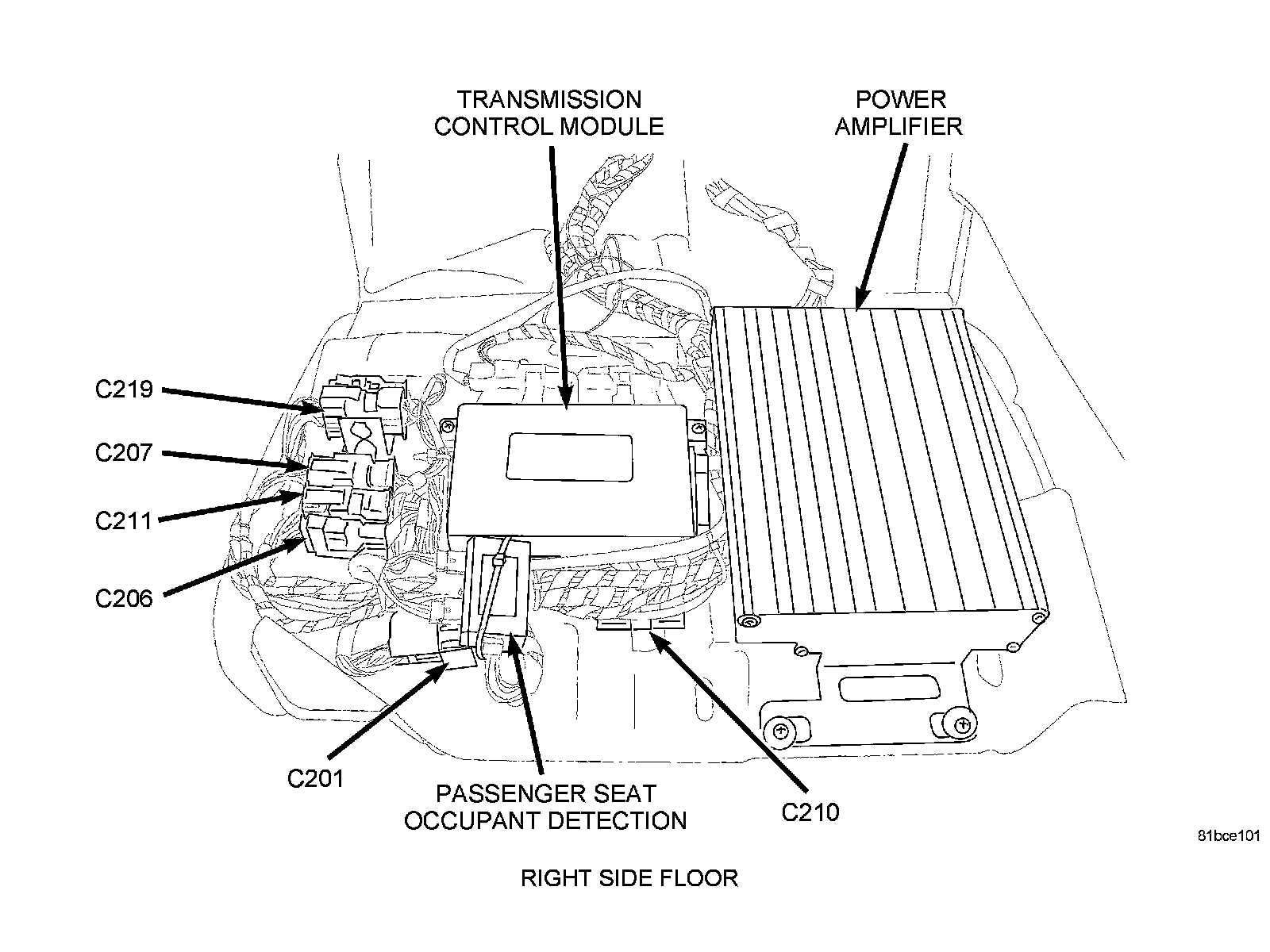

Component Location - 1




Component Location - 16






Connector:

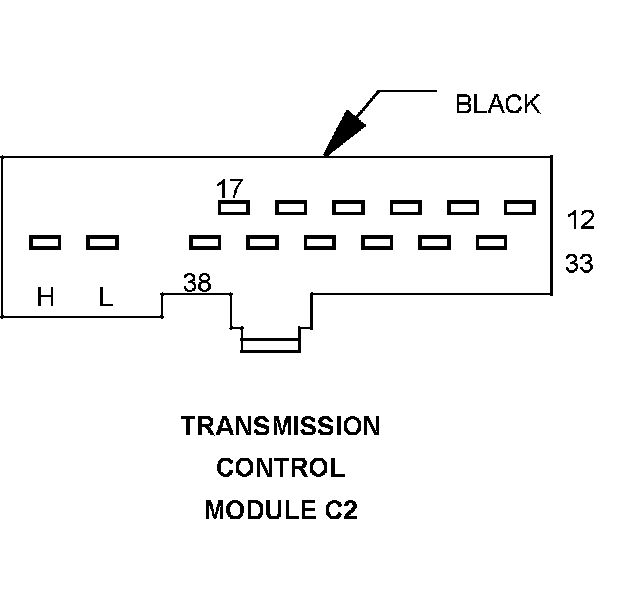

Name : TRANSMISSION CONTROL MODULE C2
Color : BLACK
# of pins : 12




12 20WT N2 INPUT SPEED SENSOR
13 20BL/DG SENSOR SUPPLY VOLTAGE
14 20GY/RD 1-2/4-5 SOLENOID CONTROL
15 20GY/VT 3-4 SOLENOID CONTROL
16 20GY/DG 2-3 SOLENOID CONTROL
17 20GY/BK TCC SOLENOID CONTROL
33 20BR SENSOR GROUND
34 20BL/YL TEMP SENSOR P/N SWITCH
35 20BK N3 INPUT SPEED SENSOR
36 20DG/YL MODULATION PRESSURE SOLENOID CONTROL
37 20DG SHIFT PRESSURE SOLENOID CONTROL
38 18RD SOLENOID SUPPLY VOLTAGE
H - -
L - -

Component Location - 1




Component Location - 16






Connector:

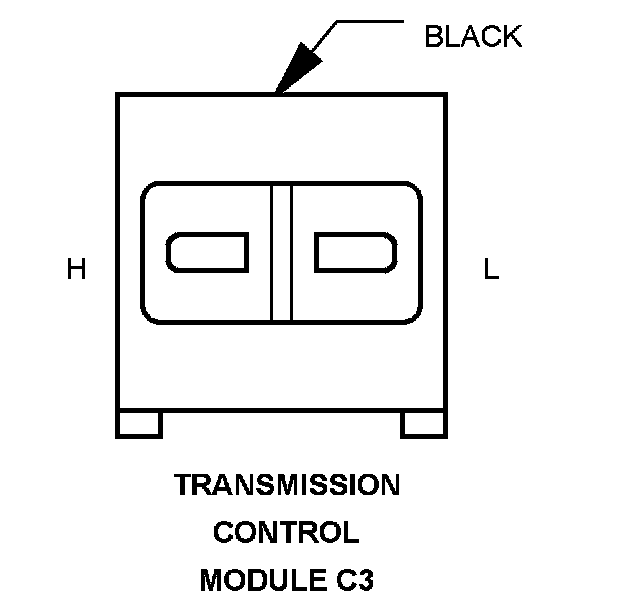

Name : TRANSMISSION CONTROL MODULE C3
Color : BLACK
# of pins : 2




H 20WT CAN C BUS (+)
L 20DG CAN C BUS (-)

Component Location - 1




Component Location - 16
