C106

Component ID: 24
Component : C106

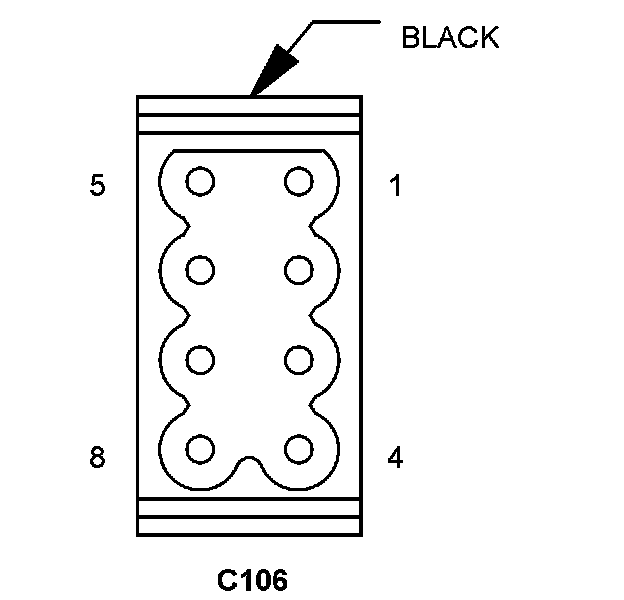

Connector:
Name : C106
Color : BLACK
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 20BR/VT AIR PUMP RELAY CONTROL
2 - -
3 18BL/DG A/C COMPRESSOR CLUTCH CONTROL
4 16BK/YL FUSED IGNITION SWITCH OUTPUT
5 18BL LOW BATTERY INDICATOR OUTPUT
6 14VT STARTER SOLENOID OUTPUT
7 - -
8 - -

Component Location - 4

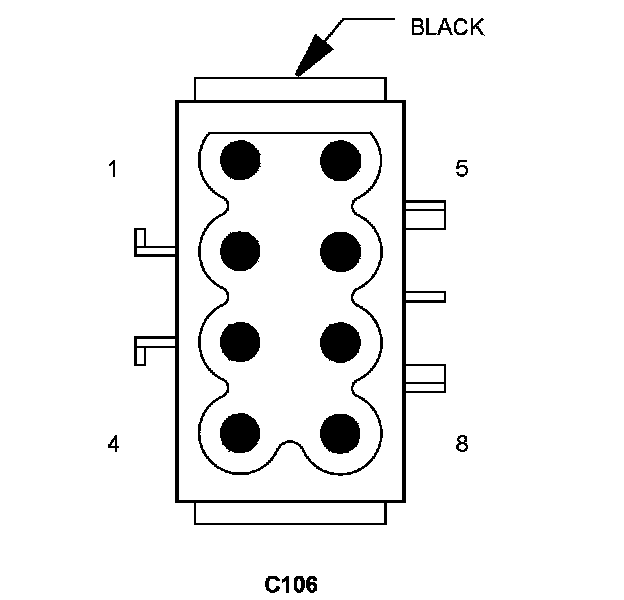

Connector:
Name : C106
Color : BLACK
# of pins : 8
Gender : MALE




Pin Circuit Description
1 20BR/VT AIR PUMP RELAY CONTROL
2 - -
3 18BL/DG A/C COMPRESSOR CLUTCH CONTROL
4 16BK/YL FUSED IGNITION SWITCH OUTPUT
5 20BL LOW BATTERY INDICATOR OUTPUT
6 14VT/WT STARTER SOLENOID OUTPUT
7 - -
8 - -

Component Location - 4
