C105

Component ID: 23
Component : C105

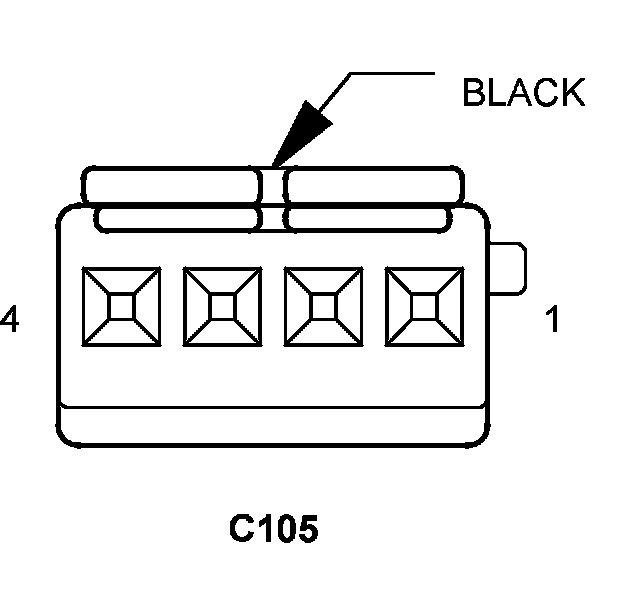

Connector:
Name : C105
Color : BLACK
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 18BR/RD HOOD AJAR SWITCH SENSE
2 20YL/RD SIREN SIGNAL OUTPUT
3 - -
4 - -

Component Location - 3

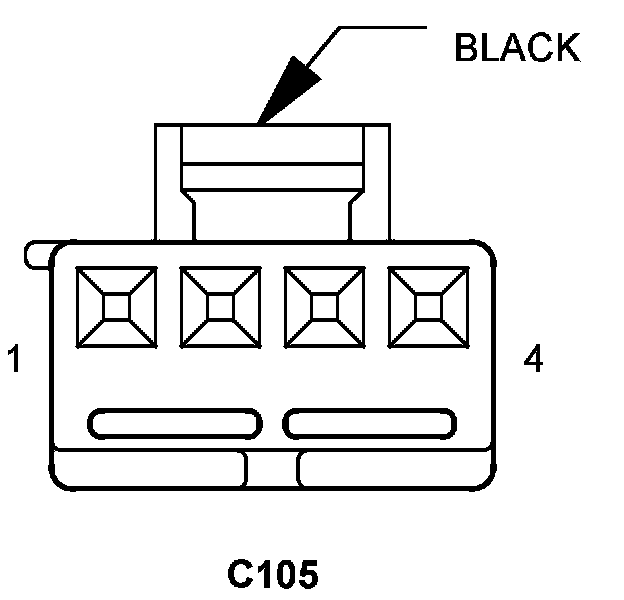

Connector:
Name : C105
Color : BLACK
# of pins : 4
Gender : MALE




Pin Circuit Description
1 18BR/RD HOOD AJAR SWITCH SENSE
2 20YL/RD SIREN SIGNAL OUTPUT
3 - -
4 - -

Component Location - 3
