Amplifier, Sound System

Component ID: 225
Component : POWER AMPLIFIER

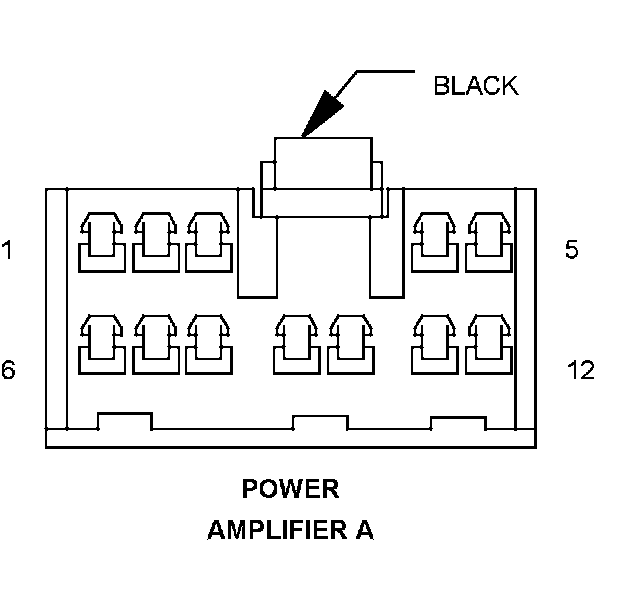

Connector:
Name : POWER AMPLIFIER A
Color : BLACK
# of pins : 12




Pin Circuit Description
1 18BL RIGHT DOOR SPEAKER (-)
2 18BL/BR LEFT DOOR SPEAKER (+)
3 18BL/BR LEFT DOOR SPEAKER (+)
4 16BR GROUND
5 18BL/DG ENABLE SIGNAL TO AMPLIFIER
6 18YL/VT LEFT REAR SPEAKER (+)
7 18YL RIGHT REAR SPEAKER (-)
8 18BL RIGHT DOOR SPEAKER (-)
9 18YL/VT LEFT REAR SPEAKER (+)
10 18YL RIGHT REAR SPEAKER (-)
11 16BR GROUND
12 - -

Component Location - 1




Component Location - 16






Connector:
Name : POWER AMPLIFIER B
Color : BLACK
# of pins : 18




Pin Circuit Description
1 16RD/YL FUSED B(+)
2 18BL/DG ENABLE SIGNAL TO AMPLIFIER
3 20DG/WT WHEEL SPEED SENSOR OUTPUT
4 16BK/RD LEFT REAR SPEAKER GROUND
5 16BL/RD AMPLIFIED RIGHT REAR SPEAKER (+)
6 16PK AMPLIFIED LEFT REAR SPEAKER (+)
7 16BK/PK AMPLIFIED RIGHT DOOR SPEAKER (+)
8 16BK/BL AMPLIFIED LEFT DOOR SPEAKER (+)
9 16RD/YL FUSED B(+)
10 - -
11 - -
12 16BL LEFT REAR SPEAKER SUPPLY VOLTAGE
13 16RD/YL RIGHT REAR SPEAKER GROUND
14 16VT RIGHT REAR SPEAKER SUPPLY VOLTAGE
15 16BK/YL AMPLIFIED RIGHT REAR SPEAKER (-)
16 16DG AMPLIFIED LEFT REAR SPEAKER (-)
17 16BR/YL AMPLIFIED RIGHT DOOR SPEAKER (-)
18 16BR/DG AMPLIFIED LEFT DOOR SPEAKER (-)

Component Location - 1




Component Location - 16
