Occupant Restraint Controller

Component ID: 208

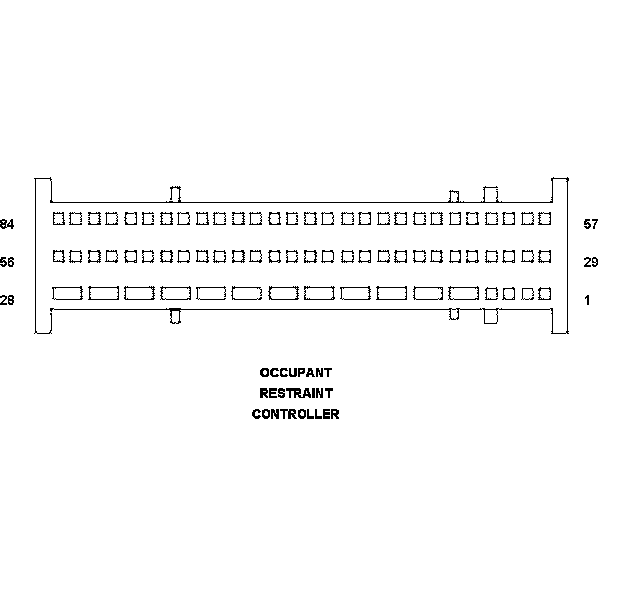

Component : OCCUPANT RESTRAINT CONTROLLER

Connector:
Name : OCCUPANT RESTRAINT CONTROLLER
Color :
# of pins : 84




Pin Circuit Description
1 20PK/RD FUSED IGNITION SWITCH OUTPUT
2 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
3 20BK/DG CAN INTERIOR BUS (125K) (-)
4 20WT/DG CAN INTERIOR BUS (125K) (+)
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 - -
30 - -
31 - -
32 - -
33 20DG DRIVER SQUIB 1 LINE 2
34 20VT DRIVER SQUIB 1 LINE 1
35 20BL DRIVER SQUIB 2 LINE 2
36 20BK DRIVER SQUIB 2 LINE 1
37 20BL/DG PASSENGER SQUIB LINE 2
38 20BR/DG PASSENGER SQUIB LINE 1
39 - -
40 - -
41 20BL/RD LEFT SIDE SQUIB LINE 2
42 20BL/GY LEFT SIDE SQUIB LINE 1
43 20BL/WT RIGHT SIDE SQUIB LINE 2
44 20BL/BK RIGHT SIDE SQUIB LINE 1
45 20YL/DG DRIVER KNEE BLOCKER SQUIB LINE 2
46 20VT/BR DRIVER KNEE BLOCKER SQUIB LINE 1
47 20BR/WT PASSENGER KNEE BLOCKER SQUIB LINE 1
48 20BL/WT PASSENGER KNEE BLOCKER SQUIB LINE 2
49 - -
50 - -
51 - -
52 - -
53 - -
54 - -
55 20PK AIRBAG WARNING INDICATOR DRIVER
56 20BR GROUND
57 20BL DRIVER SEAT BELT SQUIB LINE 2
58 20BR/YL DRIVER SEAT BELT SQUIB LINE 1
59 20BR PASSENGER SEAT BELT SQUIB LINE 1
60 20BL PASSENGER SEAT BELT SQUIB LINE 2
61 - -
62 - -
63 - -
64 - -
65 - -
66 - -
67 - -
68 - -
69 20GY/BL PASSENGER SEAT BELT SWITCH SENSE
70 20BL/DG WHEEL SPEED SENSOR OUTPUT
71 20BL/WT AIRBAG ON/OFF SWITCH SENSE (ON)
72 20DG/WT WHEEL SPEED SENSOR OUTPUT
73 20GY/DG DRIVER SEAT BELT SWITCH SENSE
74 20YL/WT RIGHT FRONT IMPACT SENSOR SIGNAL
75 20GY AIRBAG ON/OFF SWITCH SENSE (OFF)
76 20BL/YL LEFT SIDE IMPACT SENSOR SIGNAL
77 20BK AIRBAG OFF INDICATOR DRIVER
78 20WT/YL RIGHT SIDE IMPACT SENSOR SIGNAL
79 - -
80 20YL/BK LEFT FRONT IMPACT SENSOR SIGNAL
81 - -
82 20DG/BK ENHANCED ACCIDENT REPORT DRIVER
83 - -
84 20BR GROUND

Component Location - 1




Component Location - 15
