Front

FRONT DISC BRAKE ROTOR





1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Disconnect the brake pad wear indicator.

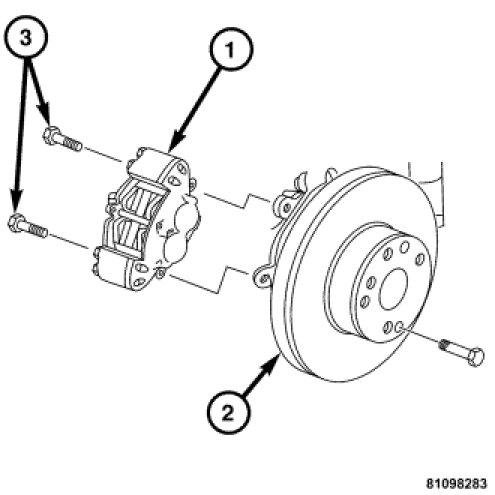

4. Remove the caliper bracket mounting bolts (3) and remove the caliper (1) and bracket as an assembly from the steering knuckle (2).




CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose can result. Provide a suitable support to hang the caliper securely.

5. Remove the retaining bolt and then remove the brake rotor (1) from the wheel hub.
