FRONT DISC BRAKE PADS





NOTE: If the caliper piston is not completely bottomed out into the caliper, you must do so in order to install the caliper onto the rotor. Use a C-clamp to bottom out caliper.

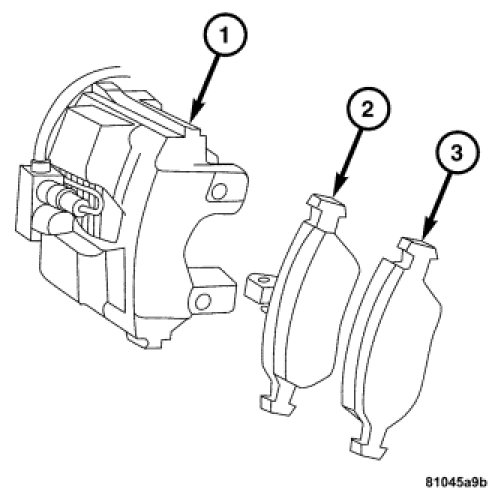

1. Install the inboard and outboard brake pads (2 and 3) onto the caliper (1).

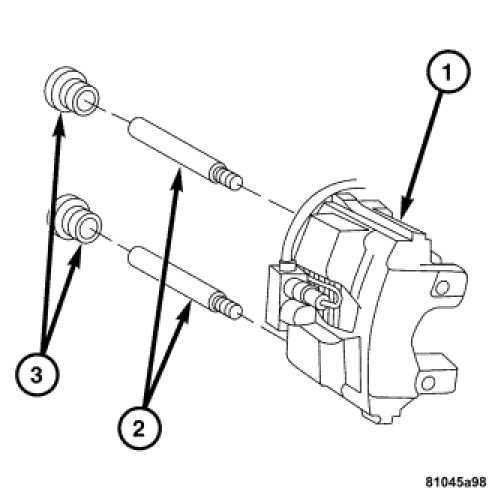

2. Lubricate the slide pins (2) and slide pin caps with silicone grease.

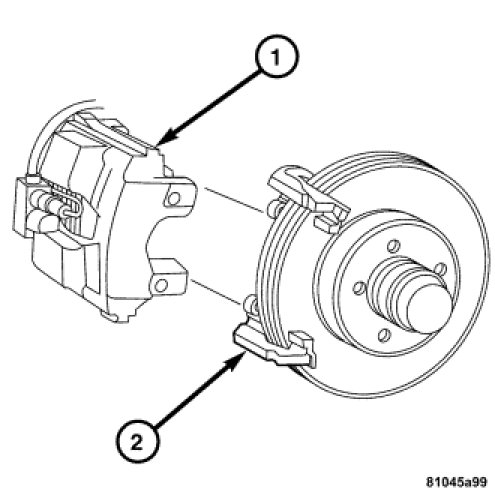

3. Install the caliper (1) on the caliper mounting bracket (2).




4. Install the caliper slide pins (2). Tighten the slide pins to 25 Nm (18 ft. lbs.).
5. Install the caliper slide pin caps (3).

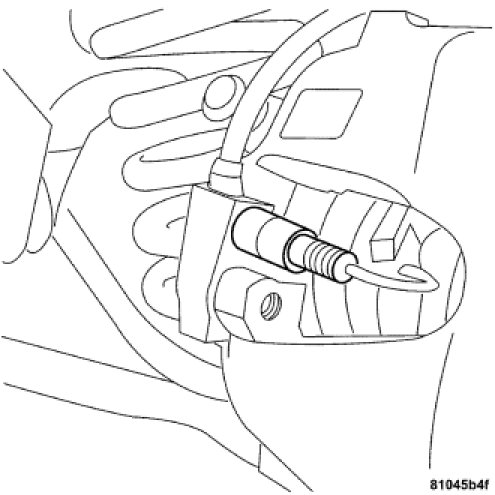

6. Connect the brake pad wear indicator harness connector.

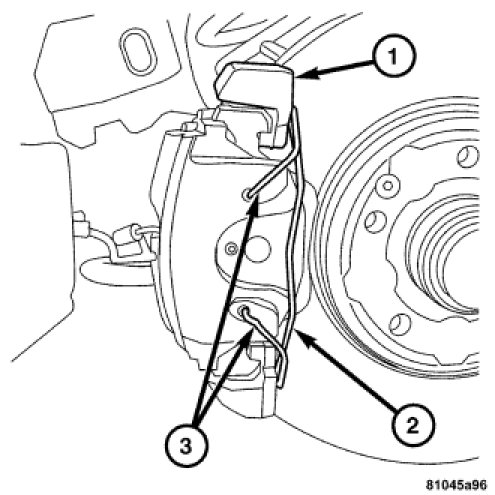

7. Install the caliper support spring (2) in the top end of the caliper under the caliper mounting bracket (1). Then install the other end into the lower caliper hole (3). Hold the spring (2) into the caliper (1) with your thumb while prying the end of the spring (2) out and down under the caliper mounting bracket with a screwdriver.
8. Install wheel and tire assembly. Procedures.
9. Lower the vehicle.
10. Pump the brake pedal until the caliper pistons and the brake pads are seated and a firm brake pedal is achieved.
11. Top off the brake fluid reservoir with new fluid if necessary, and check for leaks.
