Installation

LHD PEDAL

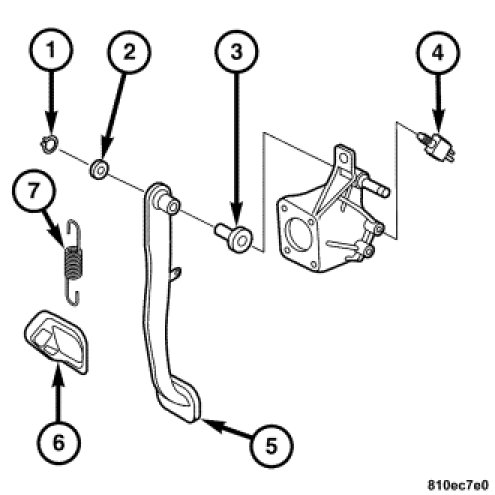

1. Install the brake pedal (5) to the bracket.
2. Install the bushing (3).
3. Install the washer (2).
4. Install the C-clip (1).
5. Install the return spring (7).

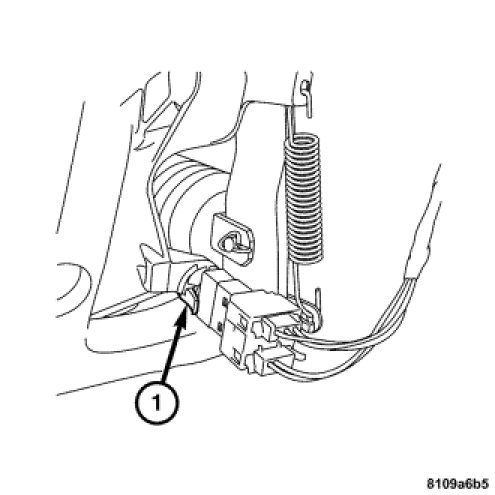

6. Install the stop lamp switch harness connector (1) to the stop lamp switch.

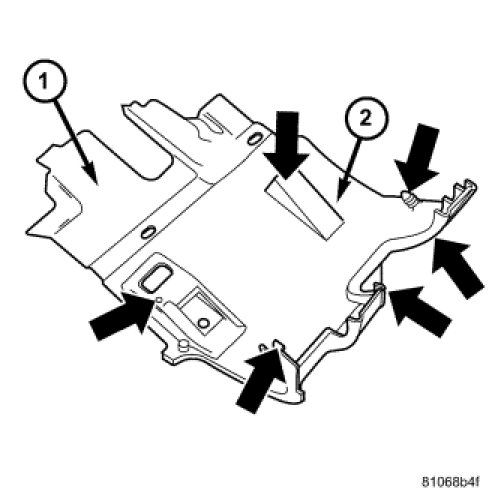

7. Install the instrument panel lower cover (2) to the instrument panel.
