Mounting Plate

MOUNTING PLATE





1. Install the mounting bracket to the mounting plate. Tighten the retaining nuts to 8 Nm (71 in. lbs.).




2. Install the mounting plate to the rear liftgate.

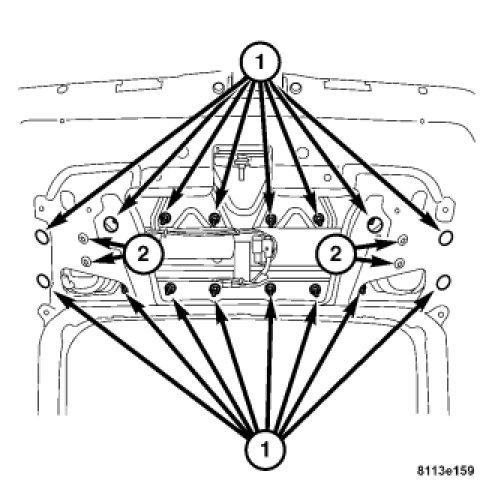

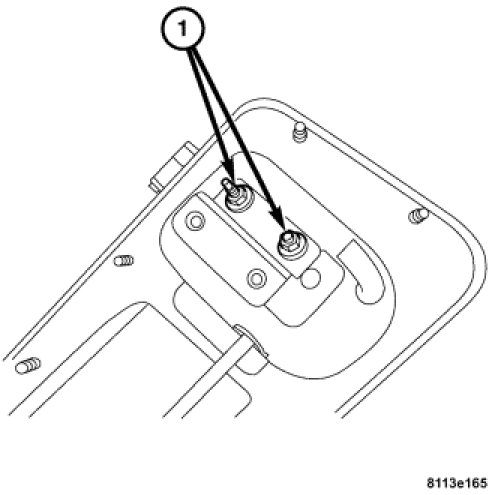

3. Install the mounting nuts (1) attaching the mounting plate to the rear liftgate. Tighten to 2.5 Nm (19 in. lbs.).
4. Install the mounting nuts (2) attaching the mounting plate to the rear liftgate. Tighten to 2.5 Nm (19 in. lbs.).
5. Install the two drain tubes.




6. Connect the spoiler electrical connectors (1).




7. Install the lower trim panel (1). Service and Repair.

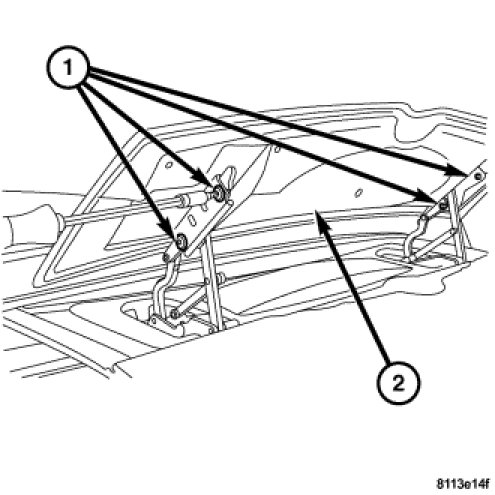

8. Install the spoiler wing (2) to the linkage (1). Spoiler Wing.




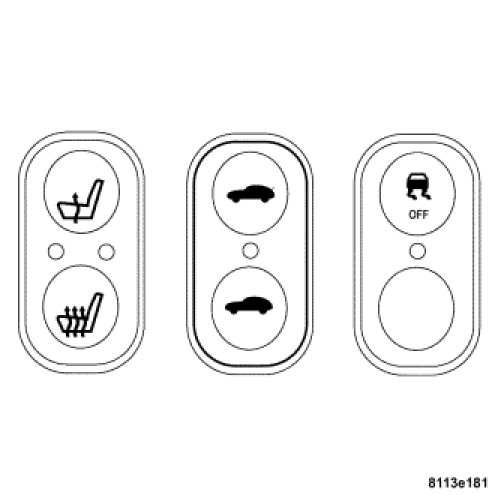

9. Verify the rear spoiler operation by using the manual override switch to operate the spoiler making sure there is smooth operation and proper alignment.
