Driveshaft

DRIVESHAFT

NOTE: Only one side is shown. The procedure is the same for both sides.

1. Insert the driveshaft end through the hole in the mounting plate, then connect it to the spoiler transmission.

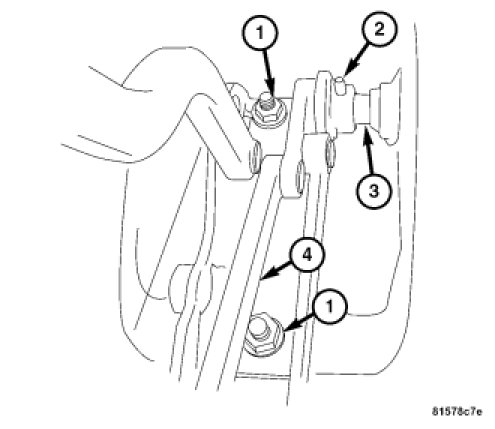

2. Position the spoiler wing frame (4) over the driveshaft end (3) and install the nuts (1).
3. Rotate the spoiler wing frame to access the roll pin hole, and install the roll pin (2).
4. Rotate the spoiler frame to the full open position.
5. Install the spoiler motor Motor.
6. Install the spoiler wing Spoiler Wing.
