Power Mirror Switch: Diagrams

Component ID: 226
Component : POWER MIRROR SWITCH

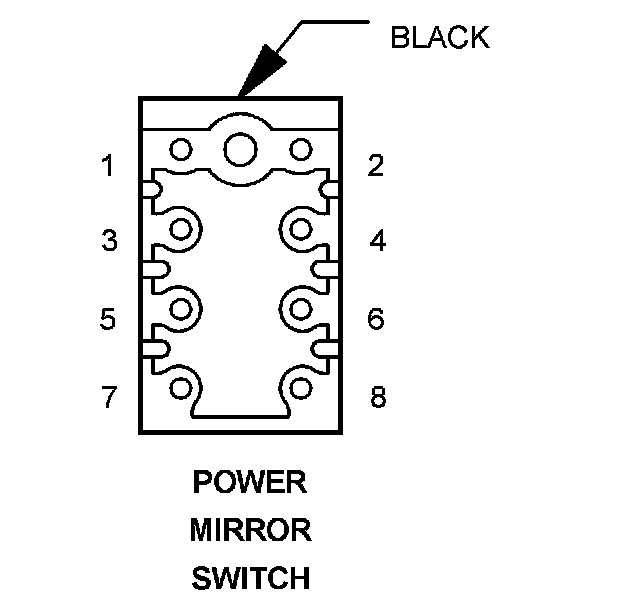

Connector:
Name : POWER MIRROR SWITCH
Color : BLACK
# of pins : 8




Pin Circuit Description
1 18BR GROUND
2 - -
3 18GY LEFT MIRROR COMMON DRIVER
4 18GY/VT RIGHT MIRROR COMMON DRIVER
5 18WT RIGHT MIRROR VERTICAL DRIVER
5 18BK LEFT MIRROR VERTICAL DRIVER
6 18PK/RD/WT FUSED B(+)
7 18WT LEFT MIRROR HORIZONTAL DRIVER
8 18BK/VT RIGHT MIRROR HORIZONTAL DRIVER

Component Location - 12
