Passenger Power Seat Recliner Motor Inoperative

*PASSENGER POWER SEAT RECLINER MOTOR INOPERATIVE









For a complete Power Seats Circuit Diagram, Schematics and Diagrams.

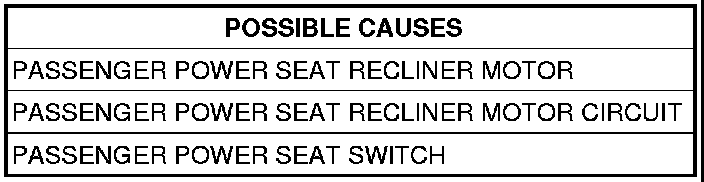

Diagnostic Test

1. TEST THE PASSENGER POWER SEAT RECLINER MOTOR




Turn the ignition off.
Disconnect the Passenger Power Seat Recliner Motor connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire from B(+) to one cavity of the Passenger Power Seat Recliner Motor connector (motor side).
Connect a second jumper wire from ground to the other cavity of the Passenger Power Seat Recliner Motor connector (motor side).
Note seat movement, if no recliner movement is noted, reverse the jumper wires at the Recliner Motor connector.
Did the Passenger Power Seat Recliner move backward or forward?

Yes

- Replace the Passenger Power Seat Switch. Power Seat Switch - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Passenger Power Seat Recliner Motor. Recliner Motor - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test
