Driver Power Seat Front Riser Motor Inoperative

*DRIVER POWER SEAT FRONT RISER MOTOR INOPERATIVE

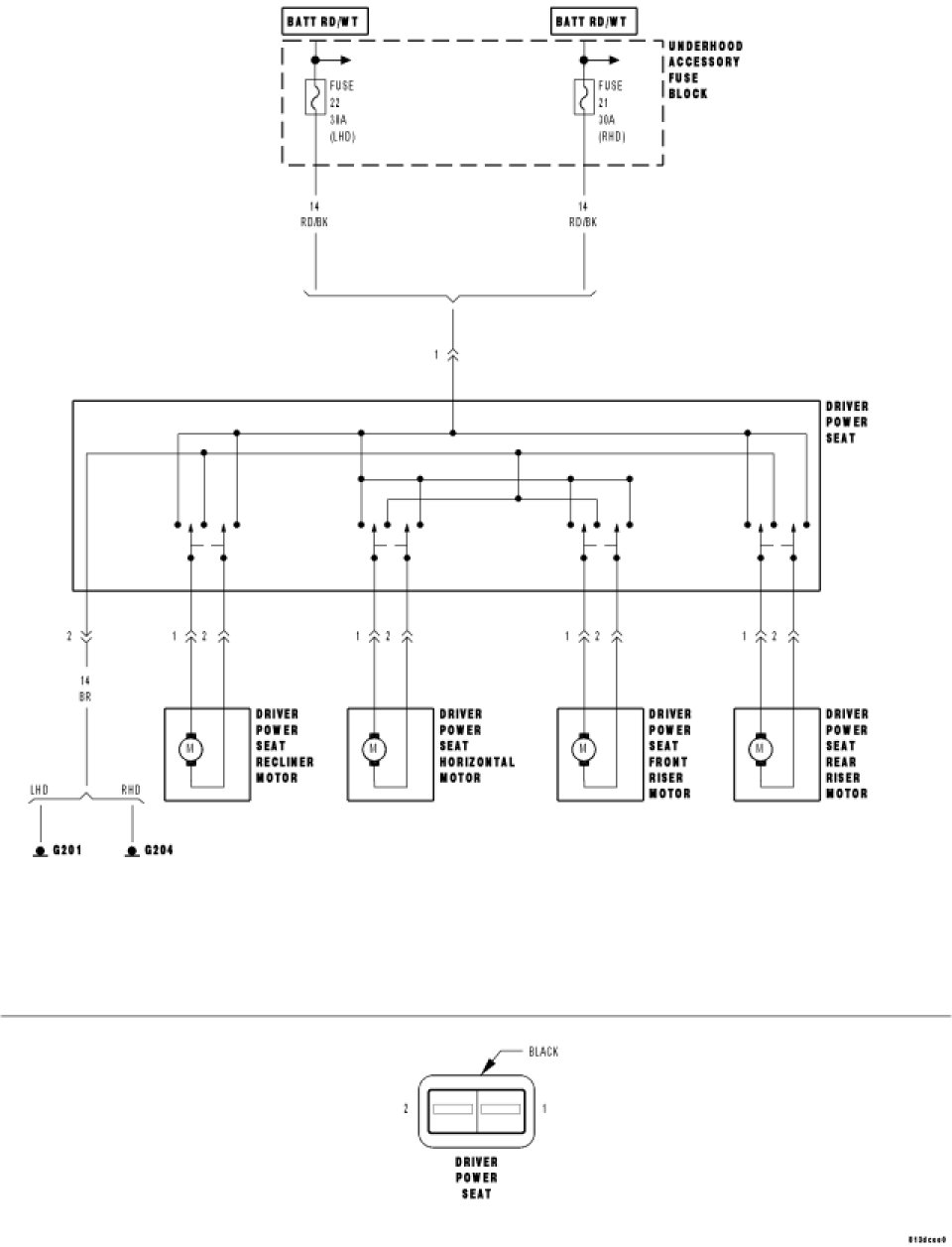

For a complete Power Seats Circuit Diagram, Schematics and Diagrams.

Diagnostic Test

1. TEST THE DRIVER POWER SEAT FRONT RISER MOTOR




Turn the ignition off.
Disconnect the Driver Power Seat Front Riser Motor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

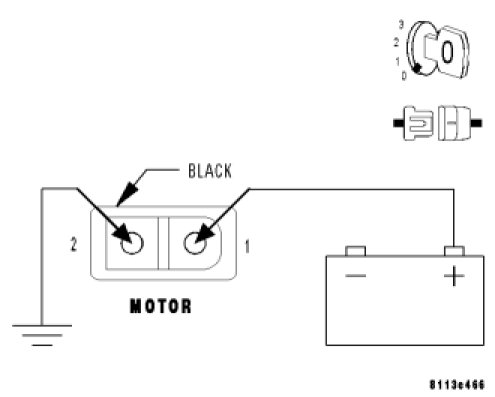

Connect a jumper wire from B(+) to one cavity of the Driver Power Seat Front Riser Motor connector (motor side).
Connect a second jumper wire from ground to the other cavity of the Driver Power Seat Front Riser Motor connector (motor side).
Note seat movement, if no seat front riser movement is noted, reverse the jumper wires at the Front Riser Motor connector.
Did the Driver Seat Front Riser move up or down?

Yes

- Replace the Driver Power Seat Switch. Power Seat Switch - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Driver Power Seat Front Riser Motor. Horizontal and Front Riser Motors - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test
