Left Heated Seat Back/Heated Seat Cushion

Component ID: 185
Component : LEFT HEATED SEAT BACK/HEATED SEAT CUSHION

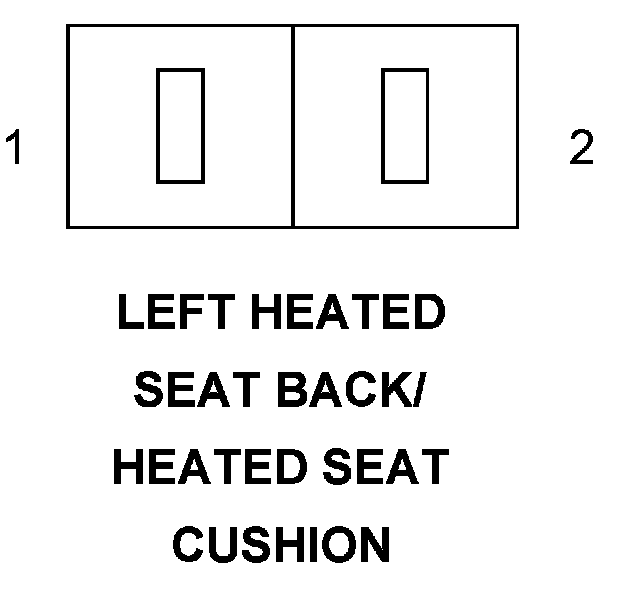

Connector:
Name : LEFT HEATED SEAT BACK/HEATED SEAT CUSHION
Color :
# of pins : 2




Pin Circuit Description
1 16BR GROUND
2 16BK/GY LEFT HEATED SEAT OUTPUT
